Removing bulb for additional brake light

  1. Carefully lever out the right-hand corner segment of the light lens with the screwdriver blade.
  2. Pull corner segment out of the lock.
  3. Turn lock of the additional brake light approx. 90° counter-clockwise and remove.

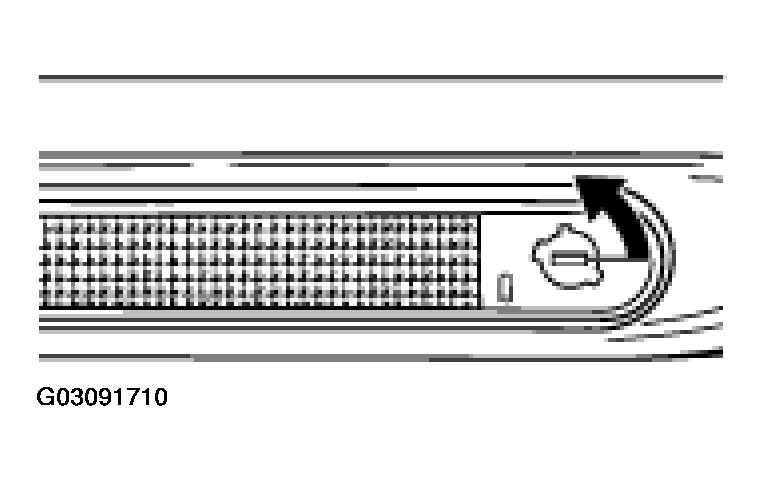

    Fig 1: Turning Lock Of Additional Brake Light
    G03091710Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Disconnect electrical plug connection and disengage all fastening tabs of the bulb holder.
  5. Remove bulb holder and take out defective bulb.

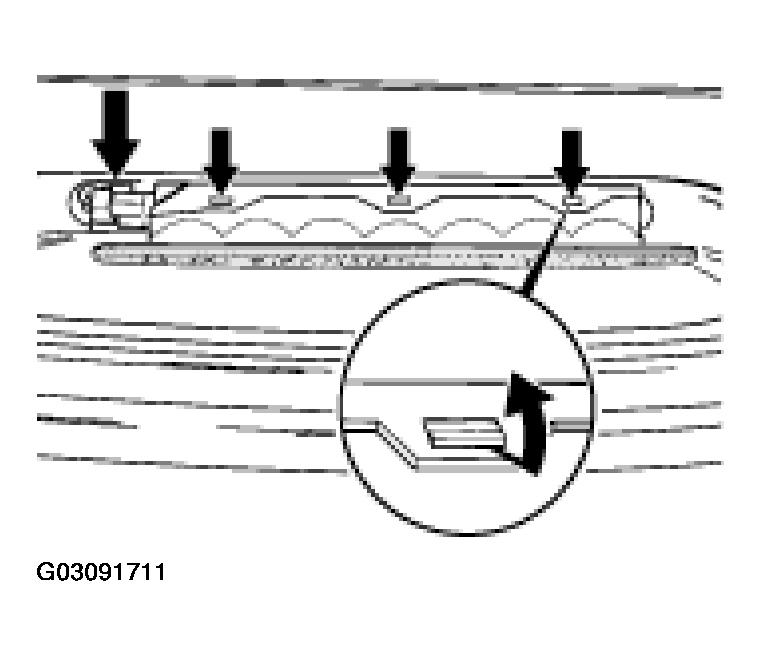

    Fig 2: Removing Bulb Holder And Taking Out Defective Brake Light Bulb
    G03091711Courtesy of PORSCHE OF NORTH AMERICA, INC.
