Adjustment procedure

1. Adjust fastening nuts to the same height as the old version and tighten slightly by hand.

   Mounting plate removed

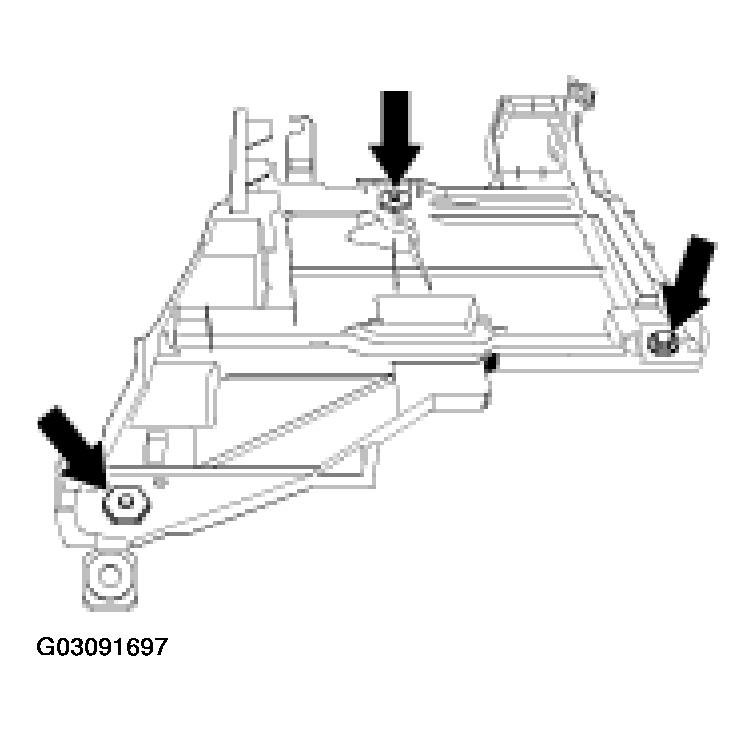

   Fig 1: Locating Fastening Nuts

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Press headlight housing firmly into the body and lock.
3. After adjustment, tighten the fastening nuts.

Tightening torque: 8 +/- 2 N.m (6 +/- 1.5 ftlb.)
