Adjustment instructions

NOTE:

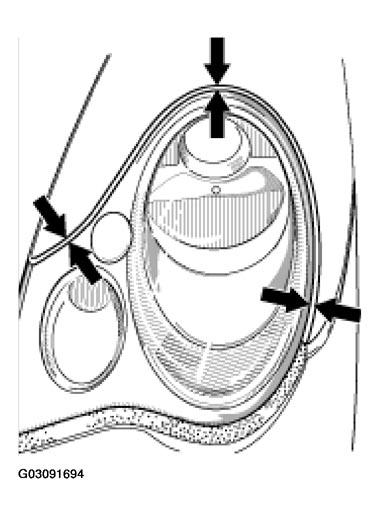

Fig 1: Adjusting Main Headlights

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The transition from the headlight housing to the body is in the same plane (level).

Factory fitting of the adjusting component fastening nuts

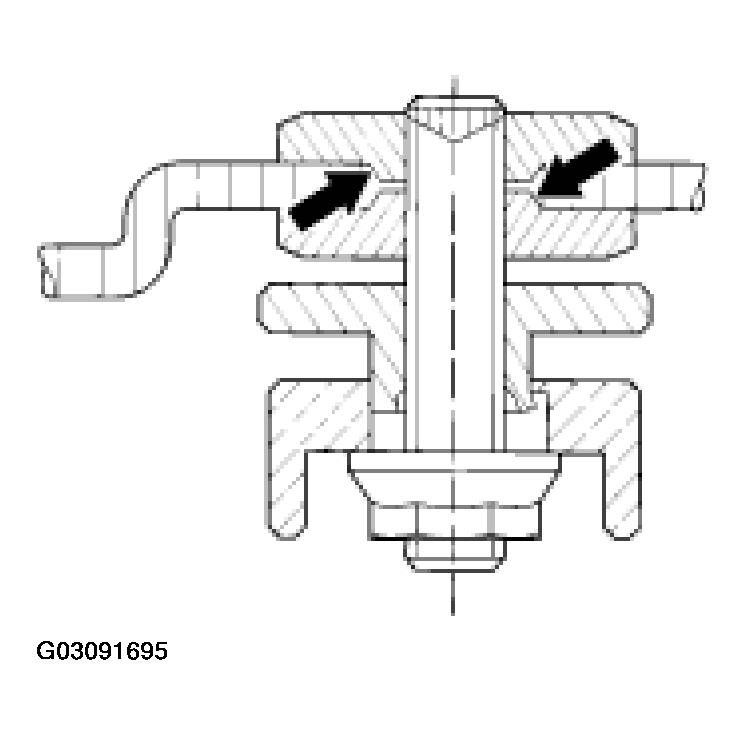

Fig 2: Identifying Factory Fitting Of Adjusting Component Fastening Nuts

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fitting of the fastening nuts in the case of accident repairs or replacement of the main headlights

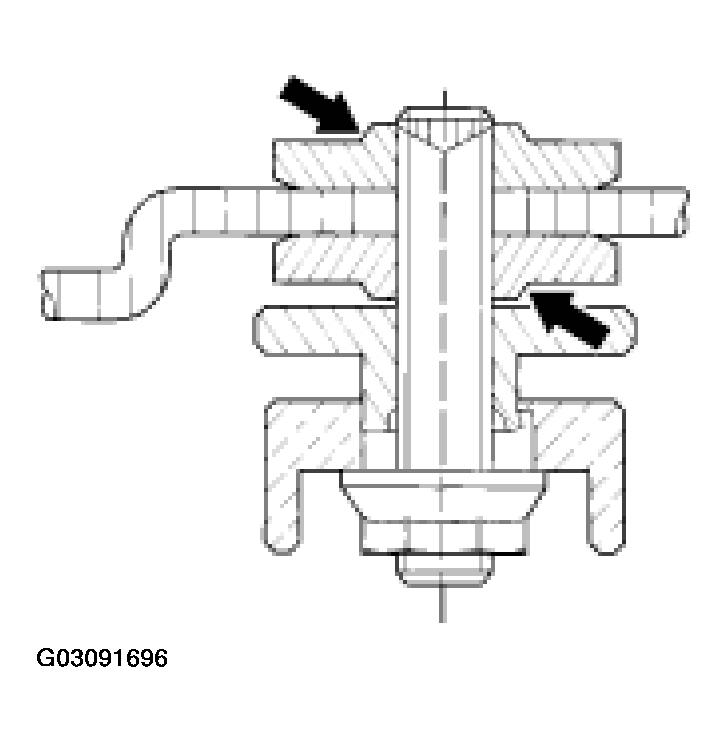

Fig 3: Fitting Of Fastening Nuts In Case Of Accident Repairs Or Replacement Of Main Headlights

Courtesy of PORSCHE OF NORTH AMERICA, INC.
