Removing horn

NOTE:
  • The high-pitch horn can be removed from below through the sound outlet opening!
  • The entire front spoiler must be removed in order to remove the low-pitch horn!
  1. Pull off electrical plug connection and observe installation position of the horn.
  2. Unscrew the M6 hexagon nut from the bracket and remove the high-pitch horn through the sound outlet opening.

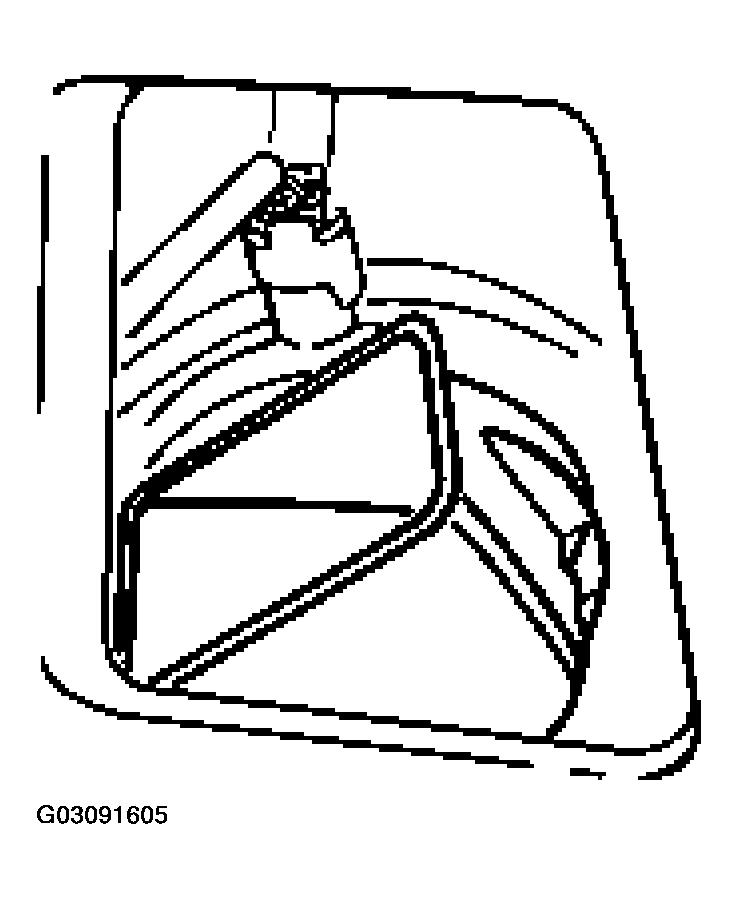

    Fig 1: Removing High-Pitch Horn
    G03091605Courtesy of PORSCHE OF NORTH AMERICA, INC.
