Radio, Navigation & Pcm Diagnosis - 911 Turbo (996)
>>
800A PCM2 - gateway
>>
CAN comfort timeout, air-conditioning system
>>
Affected pin
Affected pin
PCM2 plug E, pins 1 and 2

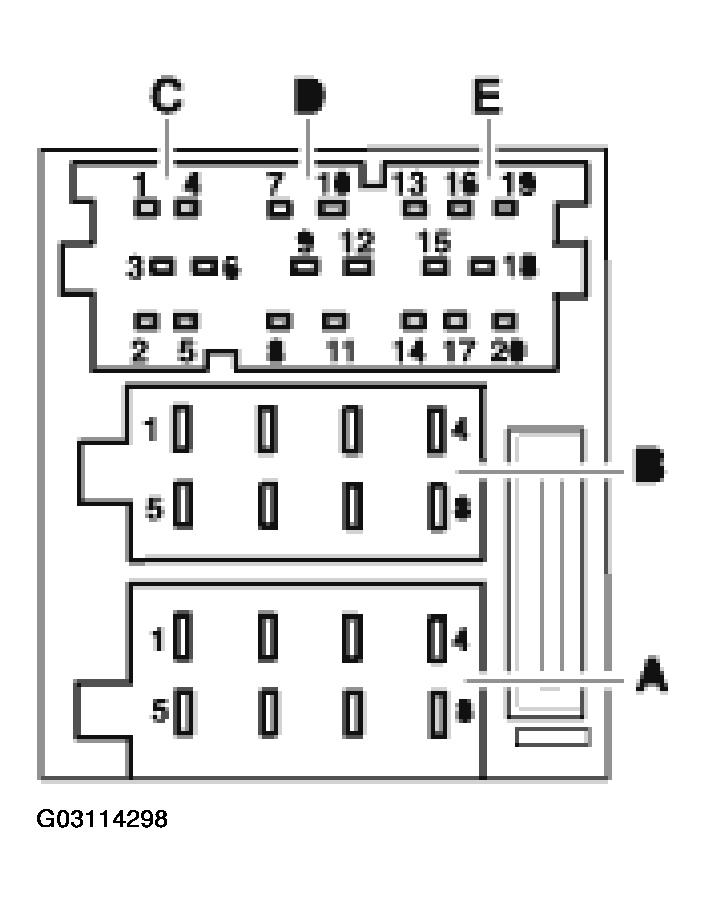

Fig 1: Identifying 800A PCM2 Plug E - Gateway Connector
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
