Affected pin

External Harman amplifier, plug A, pin 1, pin 2, pin 7, pin 14, pin 16.

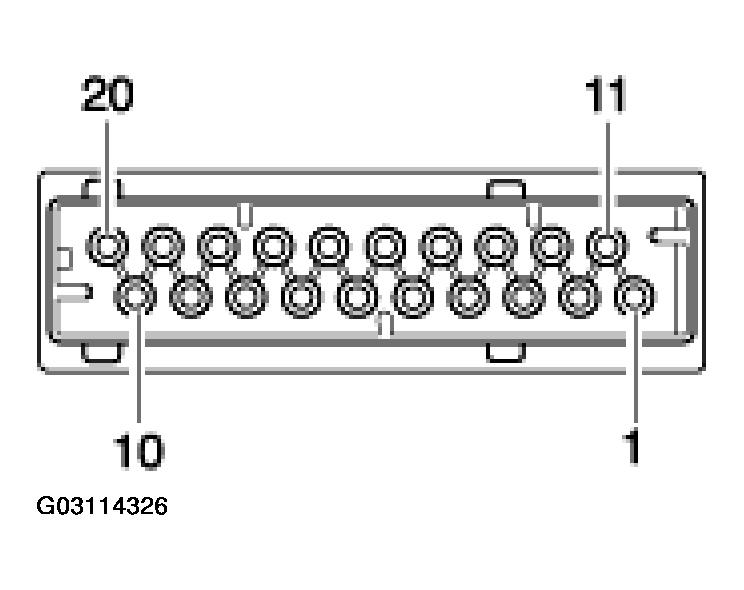

Fig 1: Identifying 8007 External Harman Amplifier Plug A Pins

G03114326

Courtesy of PORSCHE OF NORTH AMERICA, INC.
