Affected pin

BOSE external amplifier plug A, pin 23, pin 24, pin 26, pin 28.

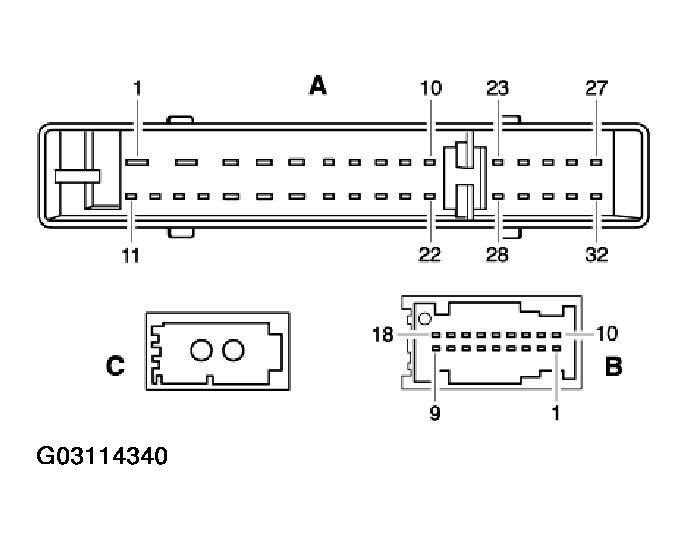

Fig 1: Identifying 8004 Bose External Amplifier Plug A Pins

G03114340

Courtesy of PORSCHE OF NORTH AMERICA, INC.
