Radio, Navigation & Pcm Diagnosis - 911 Turbo (996)
>>
8003 External BOSE amplifier
>>
Fault in front left loudspeaker channel/left door speaker
>>
Affected pin
Affected pin
External BOSE amplifier, plug A, pin 24, pin 29, pin 25 pin 38

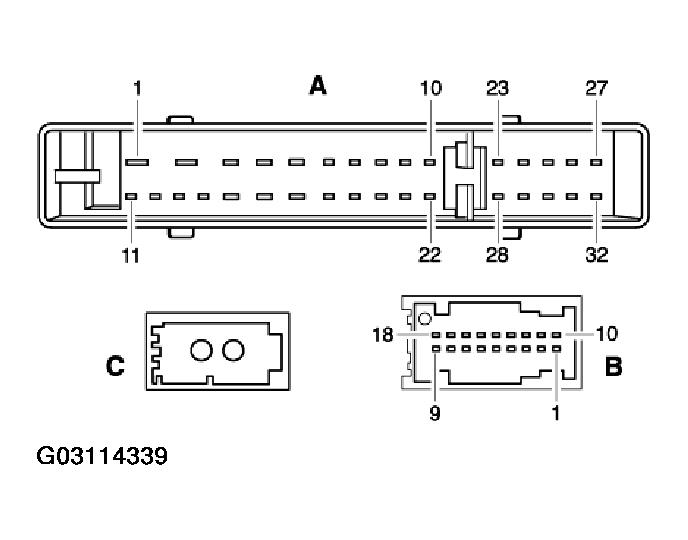

Fig 1: Identifying 8003 External Bose Amplifier Plug A Pins
Courtesy of PORSCHE OF NORTH AMERICA, INC.
