Suspension Alignment - Gt2: Tools

The special tools for suspension alignment of the 911 Turbo (996) are also used for the 911 GT2.

Additionally, a hook wrench insert (special tool 9647) is required for the 911 GT2. The special tool 9647 is required to change the vehicle height and to adjust the stabilizer mating bearing on the front and rear axle. The special tool is used together with a torque wrench to tighten the lock nuts (slotted nuts) on the spring struts. Tightening torques in TIGHTENING TORQUES FOR FRONT AXLE and TIGHTENING TORQUES FOR REAR AXLE .

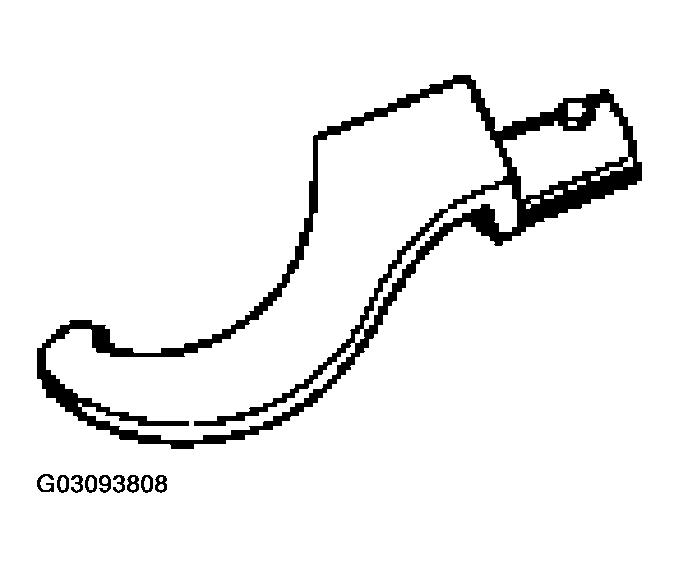

Fig 1: View Of Special Tool (9647)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
