Water drainage plan - Coupe

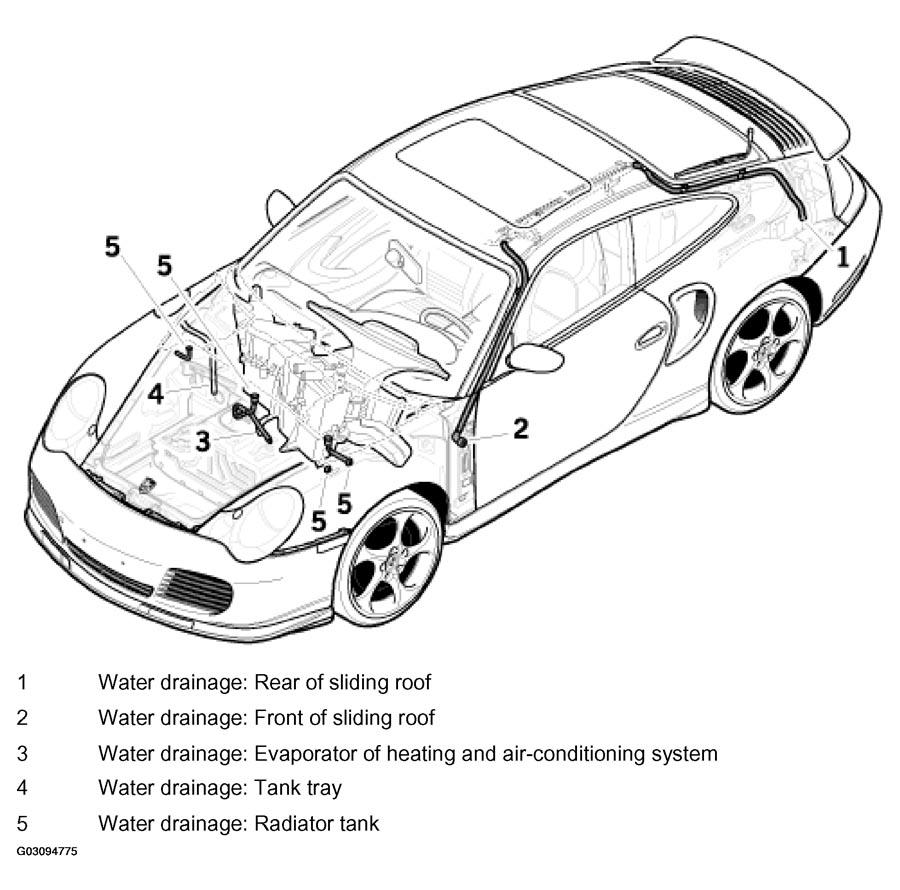

Fig 1: Identifying Water Drainage Plan - Coupe
G03094775Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Water drainage: Rear of sliding roof
  2. Water drainage: Front of sliding roof
  3. Water drainage: Evaporator of heating and air-conditioning system
  4. Water drainage: Tank tray
  5. Water drainage: Radiator tank
