Notes On Removal And Installation: Removal
- Remove brake disc, parking brake shoes, brake disc cover and speed sensor.

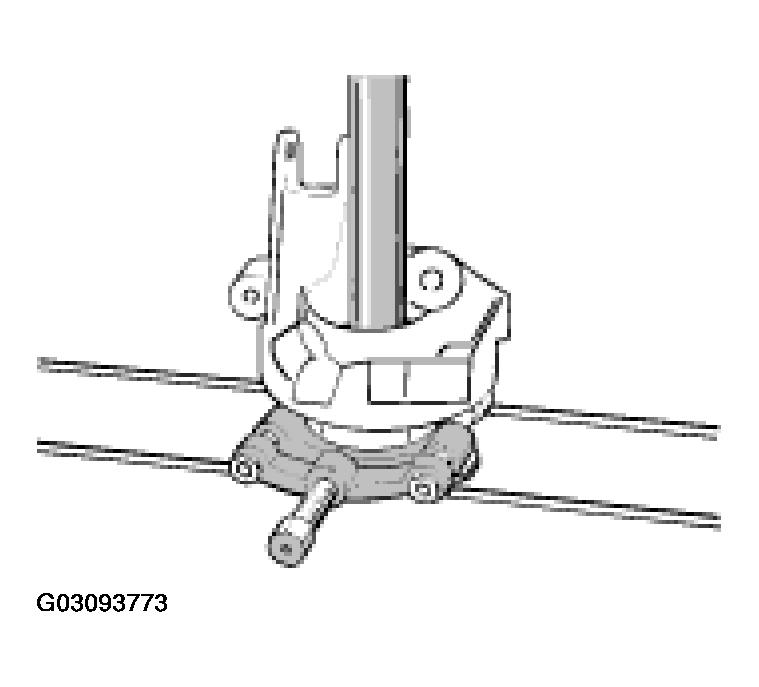

- Press the rear-wheel hub out using press-out mandrel P 297 a. Use the separator as a support. If there is not enough space for the wheel hub between the press, appropriate shims will additionally be necessary.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Remove retainer plate (lid) (four screws).

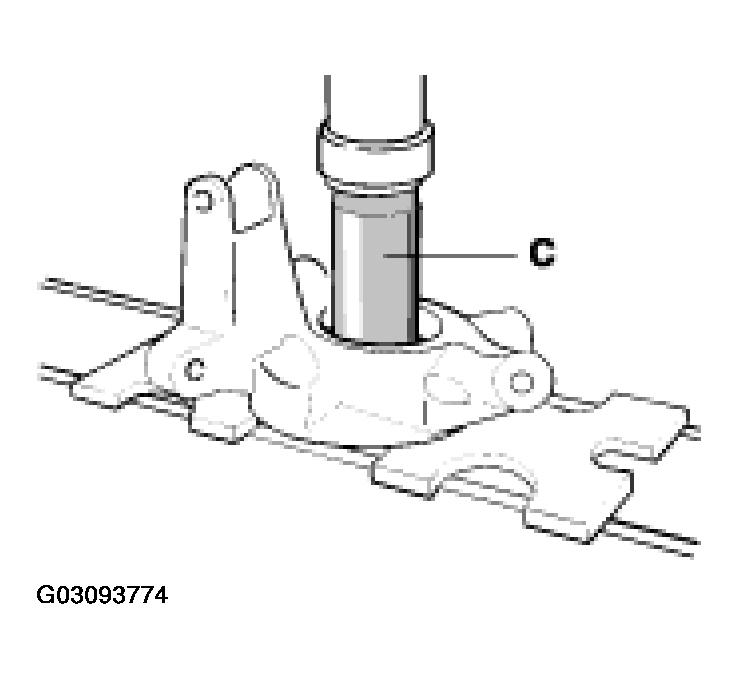

- Heat wheel bearing housing to approx. 100°C (max. 120°C). Press out wheel bearing with tubular piece VW 415A (tool -C-
).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:

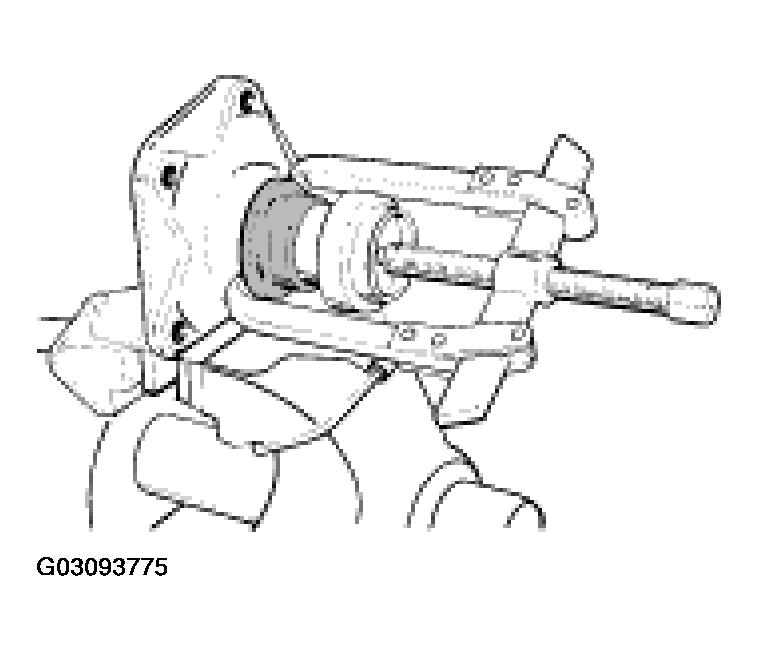

- Pull the inner bearing race several millimeters off the wheel hub so that the separator can be put into place.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- For this purpose, use a two-claw puller in combination with a suitable pressure piece (e.g. VW 433).

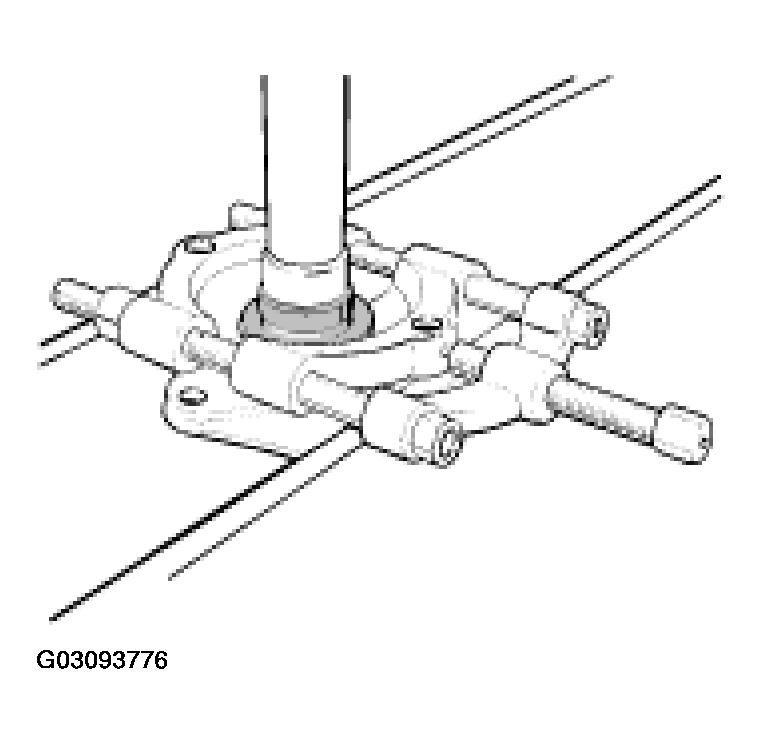

- Press inner wheel bearing race off the wheel hub. Use the press-out mandrel P 297 a in connection with the separator.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
