Disassembling and assembling rear spring strut
DISASSEMBLING AND ASSEMBLING REAR SPRING STRUT

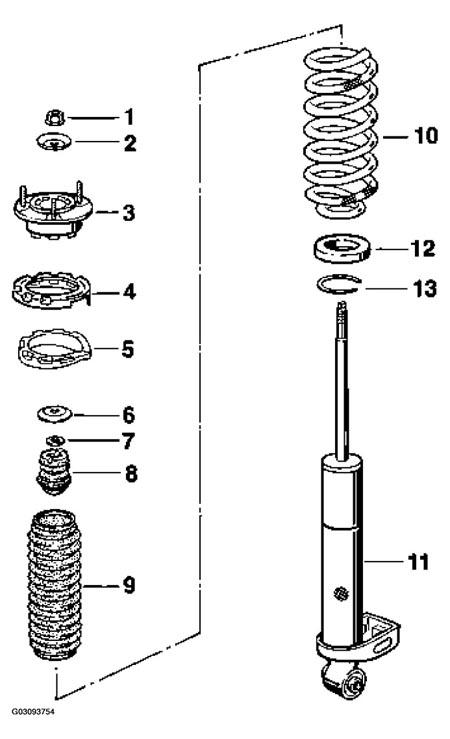

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Fastening nut M 12 x 1.5 | 1 | Before loosening the fastening nut, tension coil spring with the spring clamp. Support at the piston rod with an open-ended wrench (7 mm) when loosening the nut. |
Use new fastening nut. Tighten to 58 Nm (43 ft.lb). First position spring-strut mount 3. | ||
| 2(1) | Stop plate | 1 | Mount in correct position. No. 2 and No. 6 are identical parts. | |||
| 3(1) | Spring strut mount | 1 | Remove complete assembly (mount with intermediate part No. 9 and spring plate No. 10). | The mounts for the right and left sides are identical parts. Position the mount before tightening the fastening nut No. 1. |
||
| 4(1) | Intermediate part (compensation part) | 1 | Observe allocation. Join in correct position with spring plate No. 5. | |||
| 5(1) | Spring plate | 1 | ||||
| 6(1) | Stop plate | 1 | Mount in correct position (No. 2 and No. 6 are identical parts). | |||
| 7(1) | Washer | 1 | ||||
| 8(1) | Additional spring | 1 | Mount on protective bellows (No. 9) | |||
| 9(1) | Protective bellows | 1 | ||||
| 10(1) | Coil spring | 1 | Observe allocation as per Spare Parts Catalogue. | |||
| 11(1) | Vibration damper | 1 | Observe allocation as per Spare Parts Catalogue. The vibration dampers for the right and left sides are identical parts. |
|||
| 12(1) | Spring plate, bottom | 1 | Fit in correct position (groove facing snap ring). | |||
| 13(1) | Snap ring | 1 | Ensure perfect seating. | |||
|
||||||
