Removing And Installing Front Spring Strut: Notes

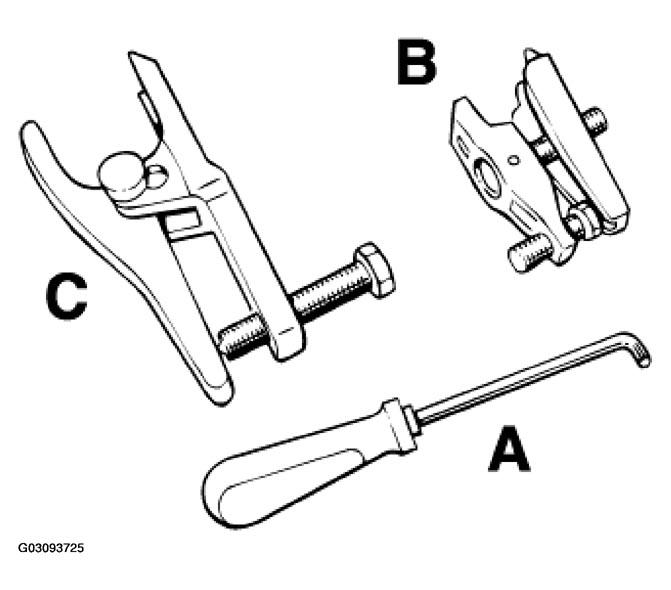

Fig 1: Identifying Front Spring Strut Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT SPRING STRUT SPECIFICATION

Item	Designation of the special tool	Explanation
A(1)	Torx screwdriver 9546	To counter the ball joints (track rod and joint mount) during assembly and disassembly.
B(1)	Ball joint extractor (track rod extractor)	Commercially available
C(1)	Press-out tool (ball joint extractor) 9560	To press out the ball joint on the wheel carrier.
(1) For explanation see Fig 1 .
