Removing And Installing Front Spring Strut: Installation
Install in reverse order to removal.
NOTE:
- Before installing, give the parts a visual check!
- Do not grease screwed connections in Dacromet finish - aluminum color!
- Use correct tightening torques!
- Replace brake caliper fastening screws and self-locking nuts.
- Insert the drive shaft into the toothing of the wheel hub.NOTE:

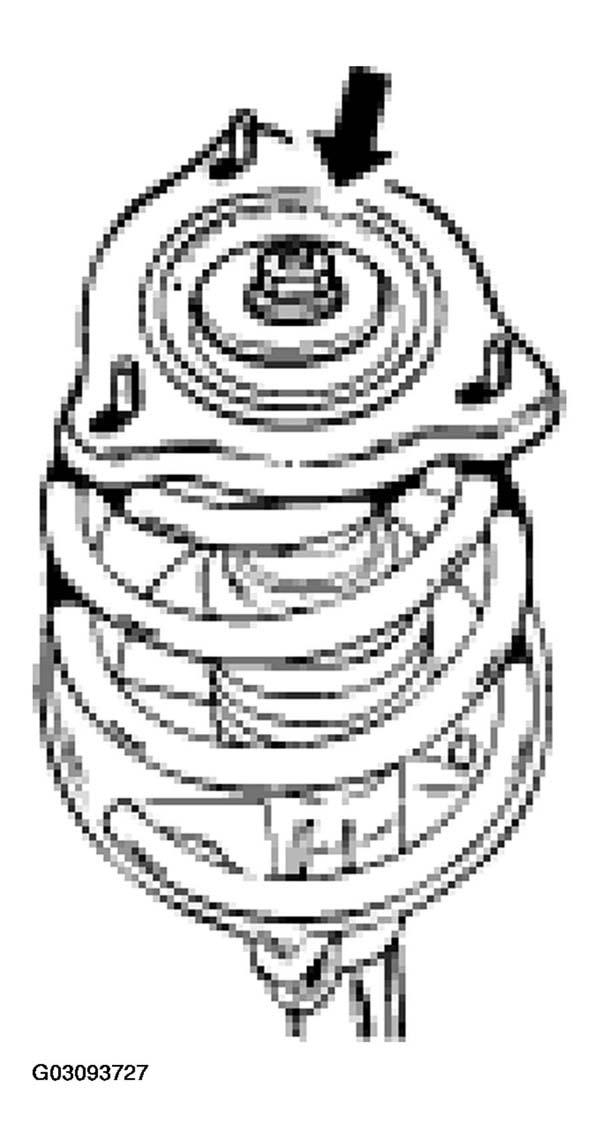

- The installation side "RE" (right) or "LI" (left) -arrow- is stamped on the spring strut mount! See Fig 1 .
- Note the installed position of the spring strut mount!
- The arrow markings must point in the direction of travel!
- Insert wheel carrier with spring strut into the vehicle.
- Check and adjust wheel alignment values at the front axle.NOTE: If assembly work was performed or parts replaced that affect the vehicle height, a complete wheel alignment is necessary!
