New front-axle cross member - as of model " 02

• As of model " 02, the front-axle cross member is attached to the body at the rear fastening with two screws -arrows-  . See Fig 1 . Up to this point (up to the end of model " 01), only one screw was used for fastening.

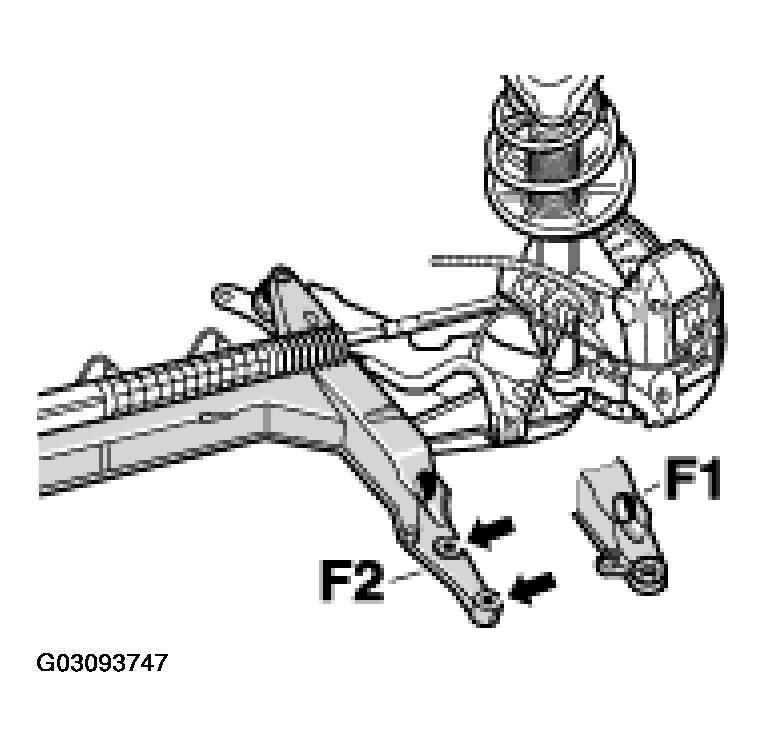

  Fig 1: Identifying New Front-Axle Cross Member - As Of Model 2002

  Courtesy of PORSCHE OF NORTH AMERICA, INC.
• The tightening torque has not been changed.
• The previous front-axle cross member -F1-  , with one fastening screw securing it to the body (per side) is still available as a spare part. See Fig 1 .
• Only certain combinations of front-axle cross member attachment -F1 or F2-  to the body are permitted. See Fig 1 .

F2 2 fastening points (as of model " 02)

F1 1 fastening point
