Preliminary Work And Notes On Assembly

NOTE:

Observe the correct allocation (running gear version) when installing new springs and/or dampers!
It is recommended to replace the coil springs only in pairs!
If the coil springs are exchanged, it might be necessary to use a different spring plate than before!

Replace nut for fastening the piston rod on the spring strut mount.
The following spring plates (compensation parts) are available:

1 white line = 3.0 mm thick compensation part

1 green line = 6.5 mm thick compensation part

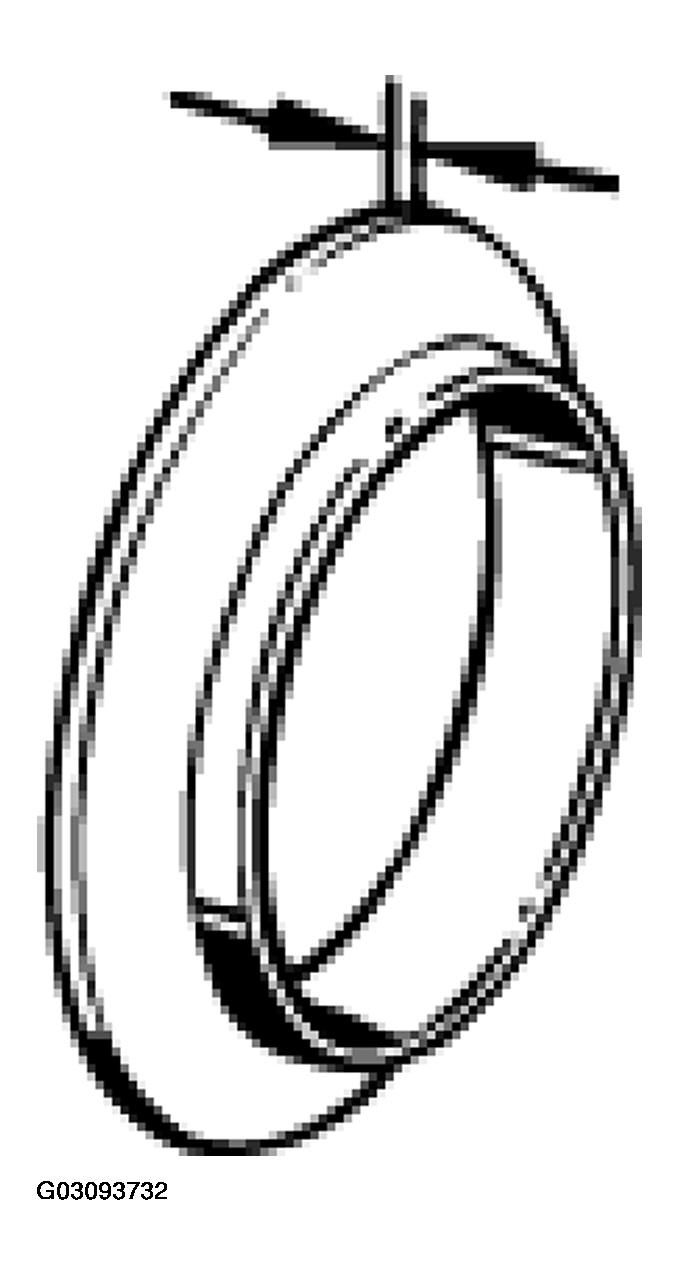

Fig 1: Identifying Spring Plate Thickness Measuring Point
Courtesy of PORSCHE OF NORTH AMERICA, INC.

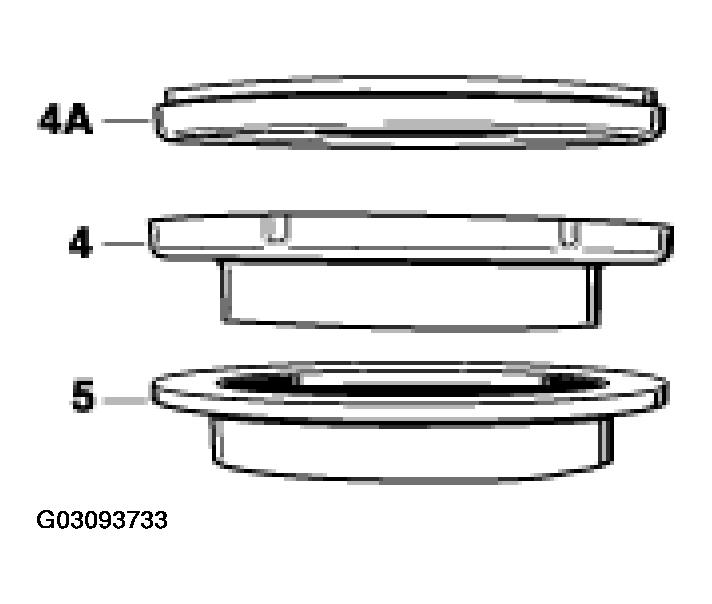

Complete mount -4A- , back-up ring -4- and spring plate -5- (compensation part).

Fig 2: Identifying Mount And Back-Up Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit protective bellows on additional spring.
Tension coil spring with spring clamp.
