Component arrangement

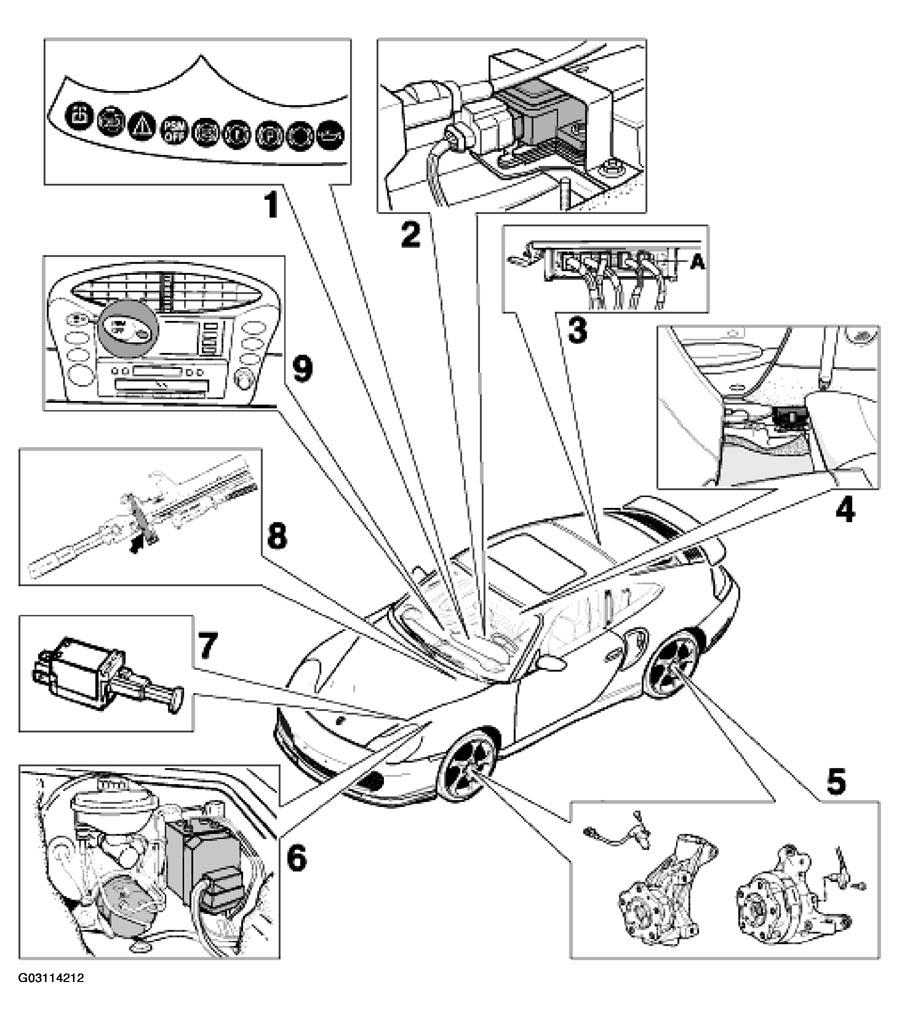

Fig 1: ABS Electrical Component Arrangement
G03114212Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Information and warning light.
    NOTE:
    • The information and warning lights in the instrument cluster are controlled via the CAN bus.
  2. Rate-of-turn sensor with integrated transverse acceleration sensor
  3. DME control module
  4. Tiptronic control module
  5. Speed sensors
  6. Brake system
  7. Stop light switch
  8. Steering angle sensor
  9. PSM OFF switch
