Bottom of front end

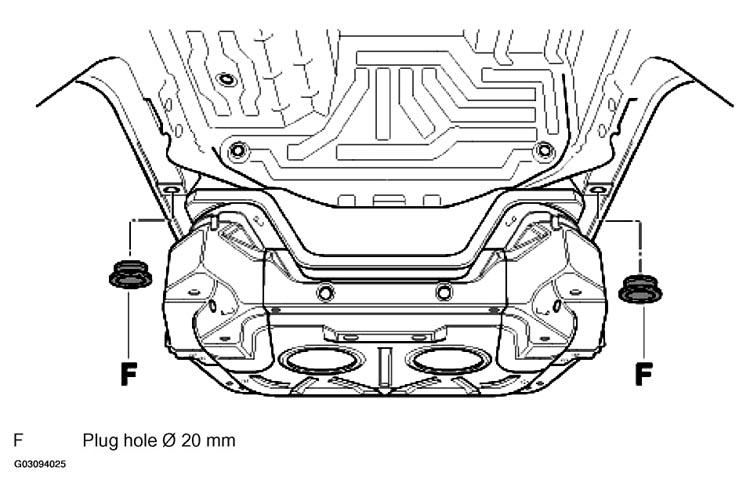

Fig 1: Locating Body Plug (Bottom Of Front End)
G03094025Courtesy of PORSCHE OF NORTH AMERICA, INC.

F Plug hole phi 20 mm
