Removing and installing center console
NOTE:
- Before removal, the centre console must be partly disassembled. For this purpose, remove both the front covers and the front trim. Refer to REMOVING AND INSTALLING CENTER CONSOLE (FRONT SECTION) .

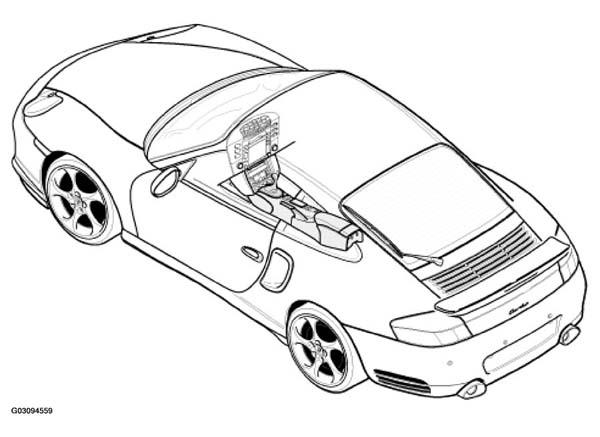

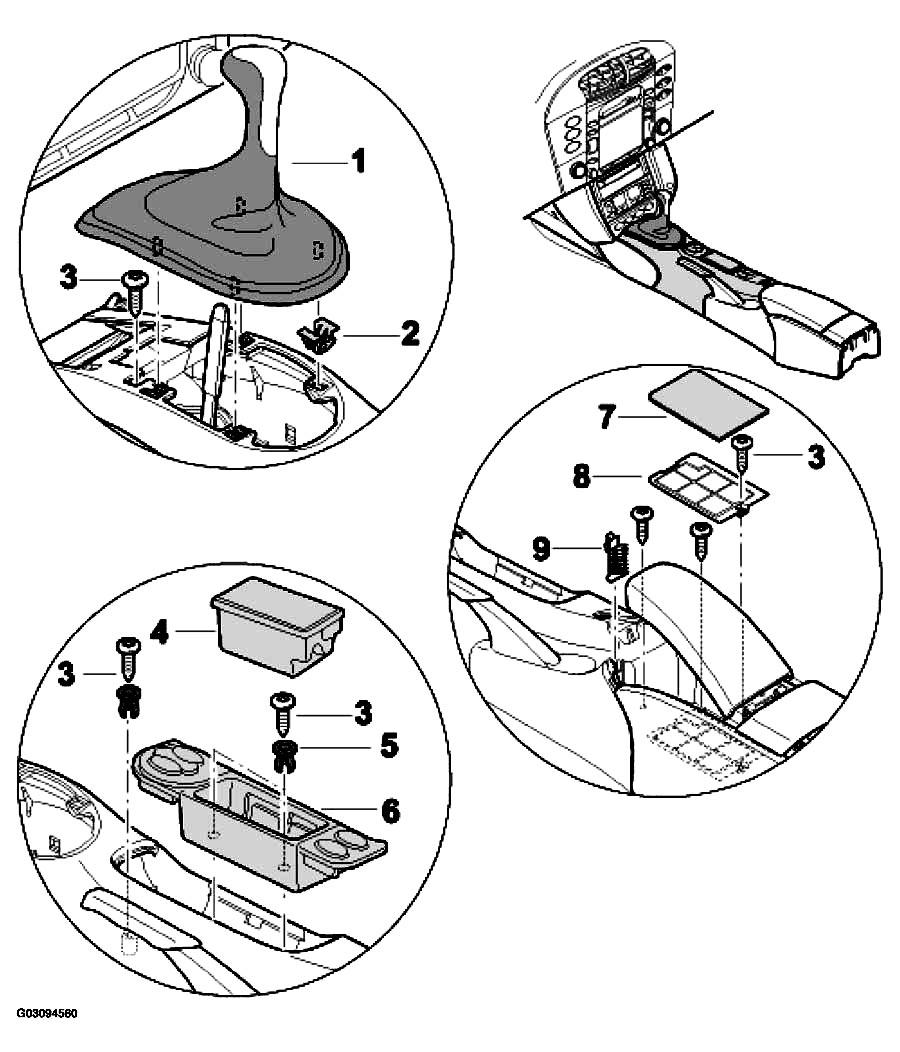

REMOVING/INSTALLING CENTER CONSOLE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Shift lever knob | 1 | Disengage from the clips -2-1- | Push on. |
| 2 | Clip | 4 | Inspect and replace if necessary. | |
| 3 | Fastening screws | 3 | Undo. | Screw in. |
| 4 | Ashtray insert | 1 | Lift out. | Press in. |
| 5 | Expanding nut | 2 | Press out. | Press in. |
| 6 | Ashtray retaining bracket | 1 | Unclip the ashtray retaining bracket -6- | Connect the electrical plug connections, secure the ashtray retaining bracket -6-3- |
| 7 | Rubber insert | 1 | ||
| 8 | Floor oddments tray | 1 | Undo fastening screw -3-8- | Position the floor oddments tray -8-3- |
| 9 | Coin box | 1 | Unclip the coin box -9-3- | Tighten the fastening screw -3-9- |
