Removing Sill Cover
REMOVING SILL COVER

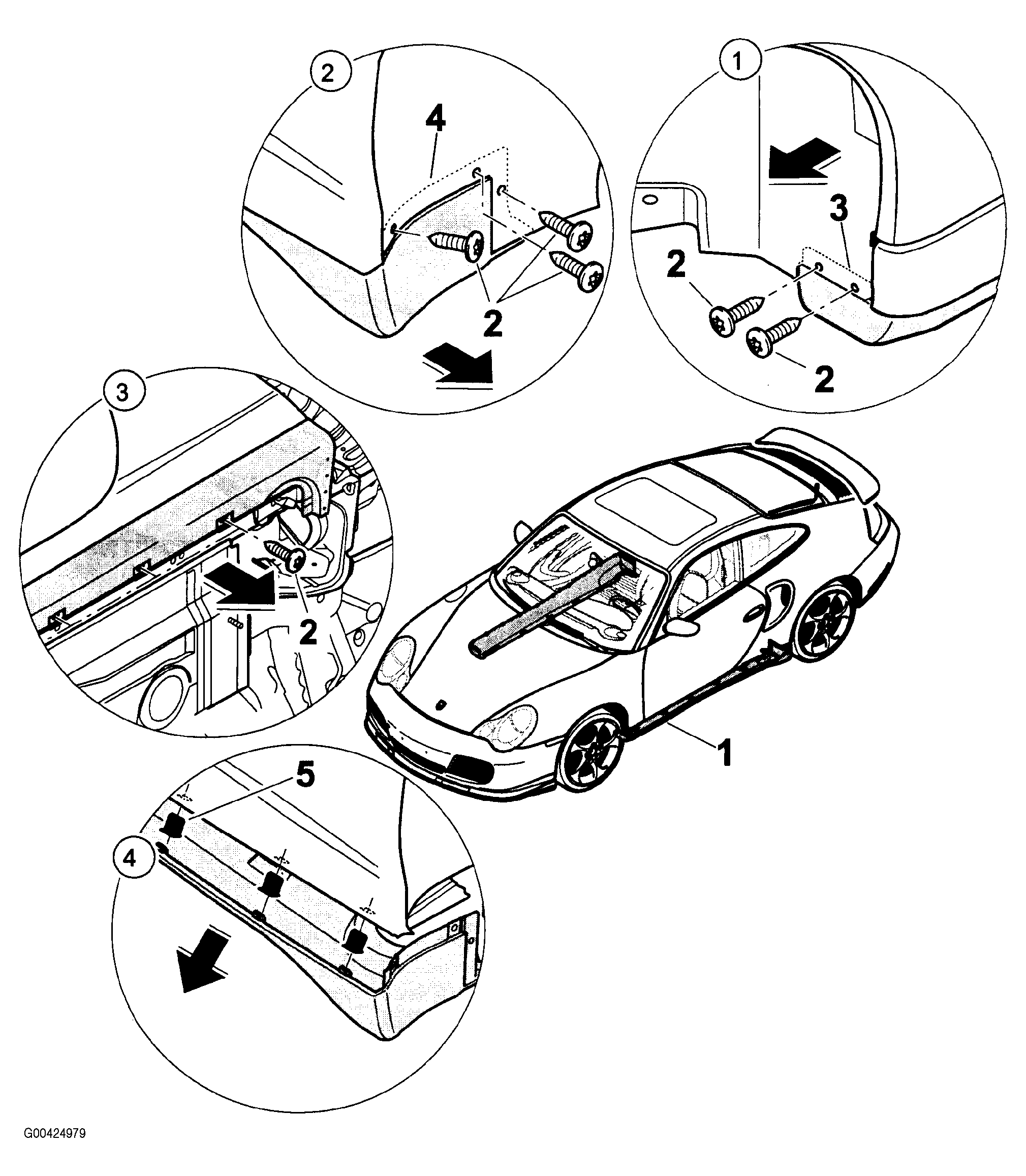

| No. | Procedure | Instructions |
| 1 | Undoing front sill cover | Unscrew fastening screw -2- from the wheel housing liner -3- . |
| 2 | Undoing rear sill cover | Unscrew fastening screw -2- from the rear wheel housing liner -4- . |
| 3 | Undoing sill cover on the lower side member | Unscrew fastening screws -2- along the sill cover -1- . |
| 4 | Removing sill cover from the lower side member | Remove sill cover from the lower side member in -direction of arrow- . Grommets -5- must always be replaced for installing the sill cover -1- . |
