Removing Roof Joint Strip
REMOVING ROOF JOINT STRIP

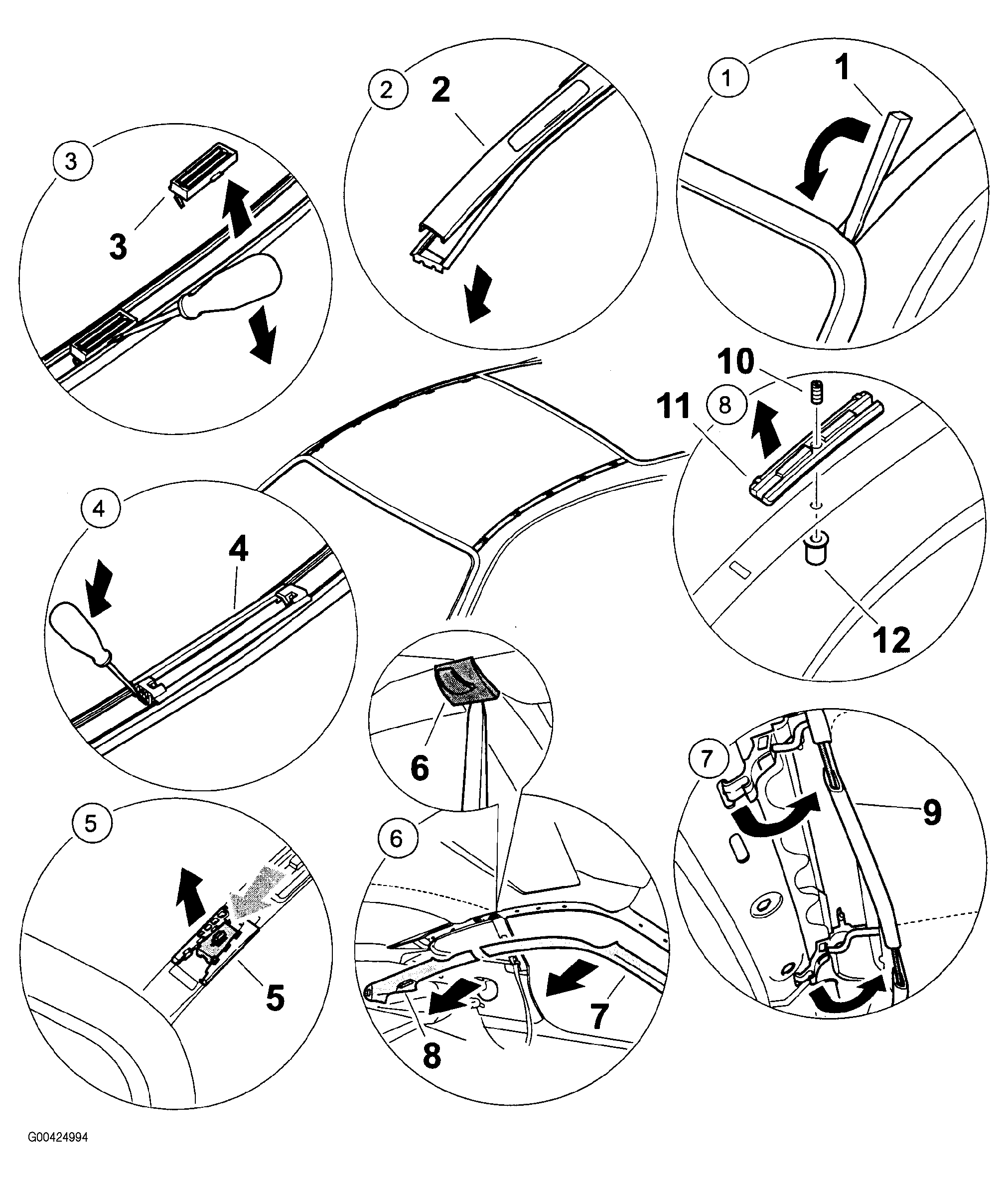

| No. | Procedure | Instructions |
| 1 | Unclip roof joint strip | Lift at both ends using a plastic spatula -1- and unclip all the way along. |
| 2 | Pull off roof joint seal | Pull the roof joint seal out of the groove of the roof joint strip -2- . |
| 3 | Disengage roof joint clips -3- | On the outside of the roof joint clip -3- and roof joint strip, insert a narrow screwdriver in the centre and press the screwdriver outward until the roof joint clip disengages. |
| 4 | Unclip fold-out element -4- | Insert a screwdriver beneath both ends of the fold-out element -4- , and lever out. |
| 5 | Detach spreader -5- | Insert a plastic spatula into the wedge piece of the spreader -5- and push. Remove the spreader. |
| 6 | Remove inner linings -7, 8- | Lift up the clothes hook bracket -6- at the bottom with a plastic spatula and pull off. Pull away the A and C-pillar trim towards the inside and remove. |
| 7 | Detach the roof liner | Unclip the metal strut -9- of the roof liner from the plastic clips. |
| 8 | Detach base plate of Roof Transport System -11- . | Unscrew hexagon socket head bushing a/f 8 (micro-encapsulated) -12- . Remove the base plate -11- from the roof channel. |
