Installing Air Inlet
INSTALLING AIR INLET

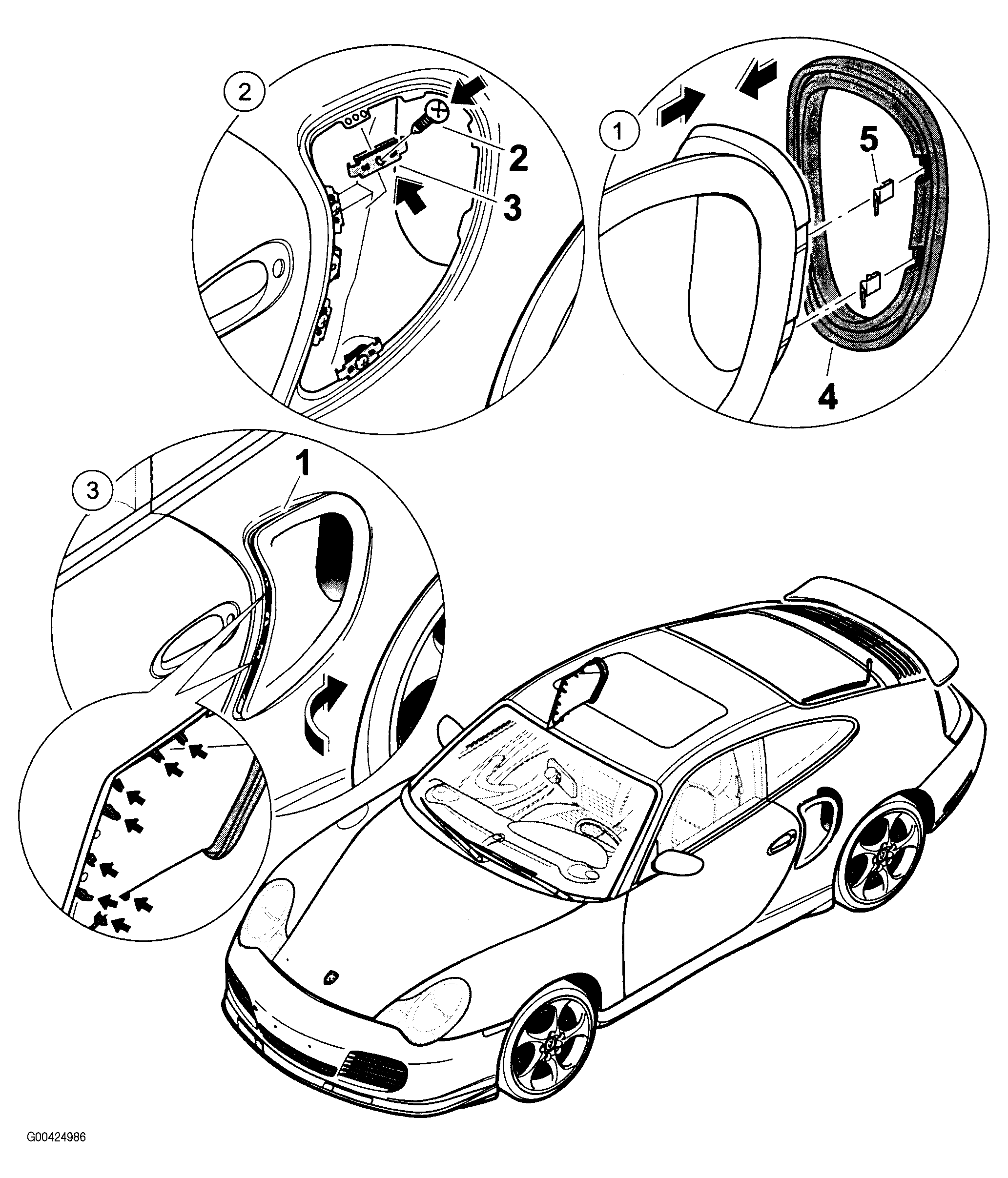

| No. | Procedure | Instructions |
| 1 | Push on seal -4- | Check seal -4-
and spring clips -5-
, replace if necessary. Attach spring clips -5- to the air inlet. Push seal -4- onto the air inlet. |
| 2 | Install retaining clips -3- | Put new retaining clips -3-
onto the tabs of the side section and align evenly in the lug bores. Screw in sheetmetal screws -2- . |
| 3 | Install air inlet -1- | Check lugs -arrows- on the air inlet -1- for damage, replace air inlet if necessary. |
| 4 | Check air inlet system on the side section and check the gap dimension | Refer to DIAGRAM - BODY GAP DIMENSIONS . The air inlet system or the gap dimension can be corrected by undoing and shifting the spring clips. |
