Removing bulb for tail light

  1. Open engine compartment lid.
  2. Unscrew fastening screws and pull out the tail light towards the rear.

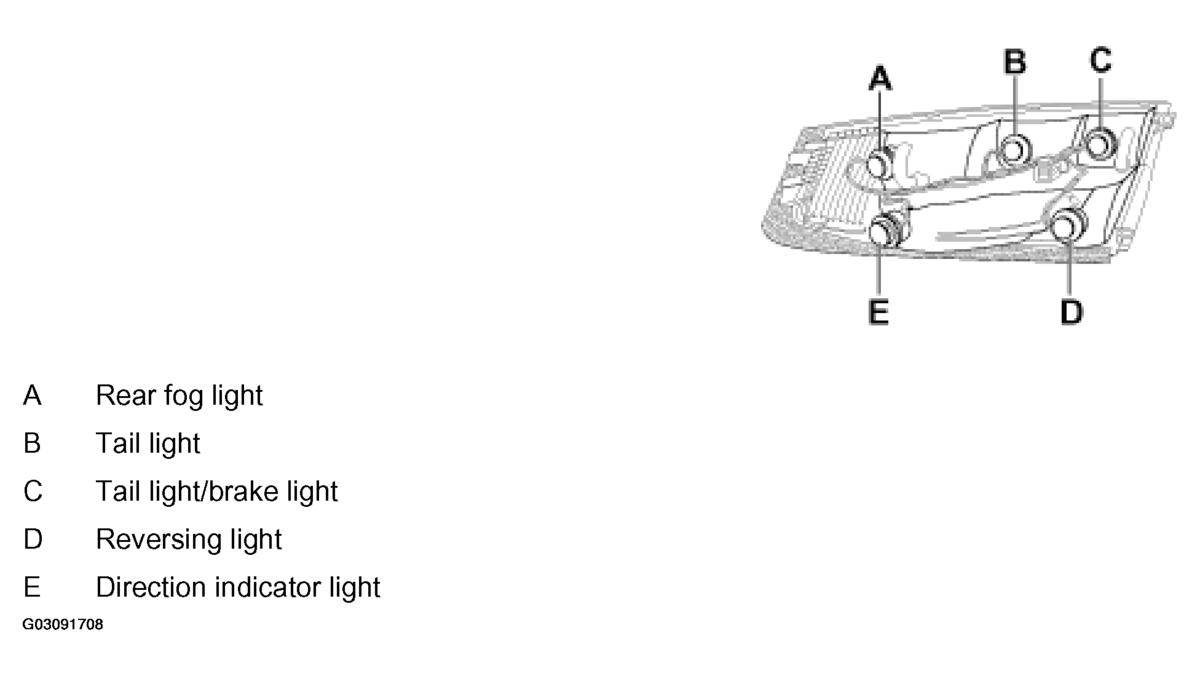

    Fig 1: Removing Bulb For Tail Light
    G03091708Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Turn bulb socket counter-clockwise and remove from the tail light.
  4. Take defective bulb out of the bulb socket (bayonet lock).
