Home >> Porsche >> 2003 >> 911 GT2 >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Radio, Navigation & Pcm Diagnosis - 911 Turbo (996) >> Control unit function - MMI >> Function of the components

Function of the components

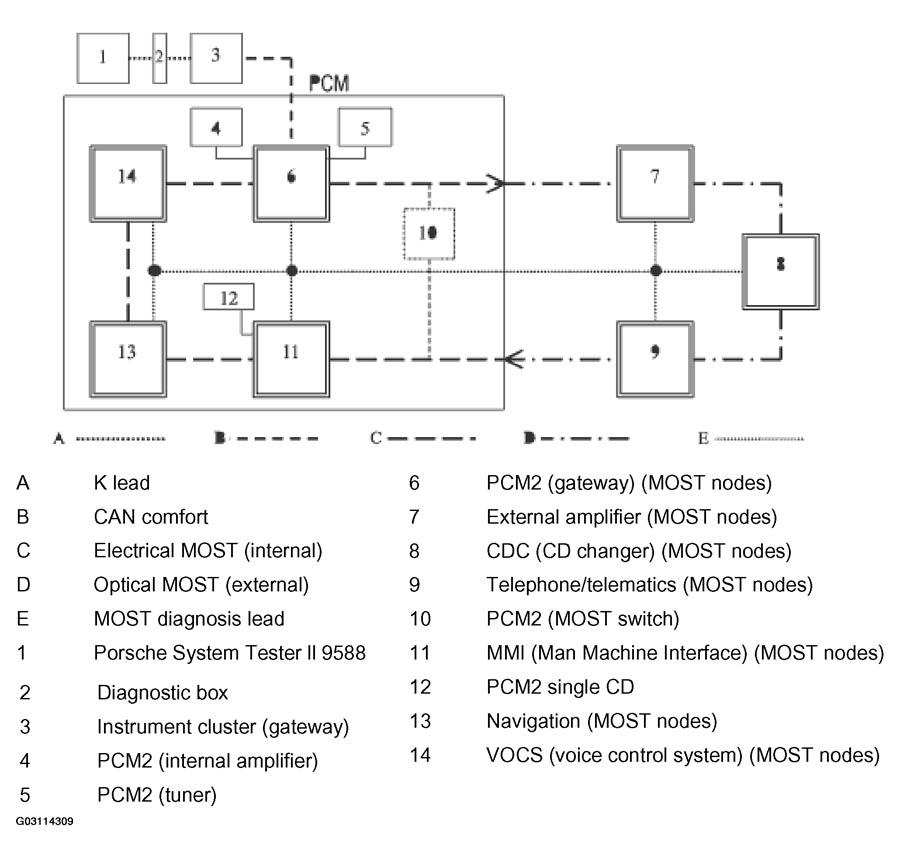

Fig 1: Identifying MMI Component Functions

G03114309

Courtesy of PORSCHE OF NORTH AMERICA, INC.
