Function of the components

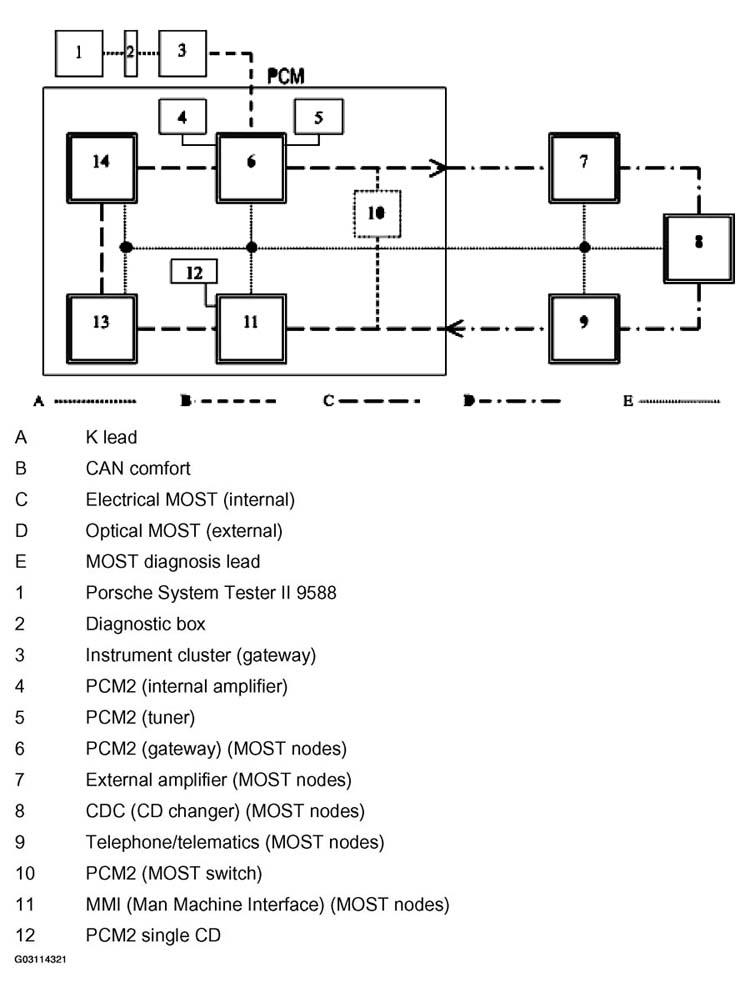

Fig 1: Identifying External Harman Amplifier Component Functions

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

When the PCM2 is replaced, the coding must be performed in accordance with the connected MOST control modules.
When the Switch closed parameter is set, the switch remains closed even in existing MOST control modules. Communication is not possible.
