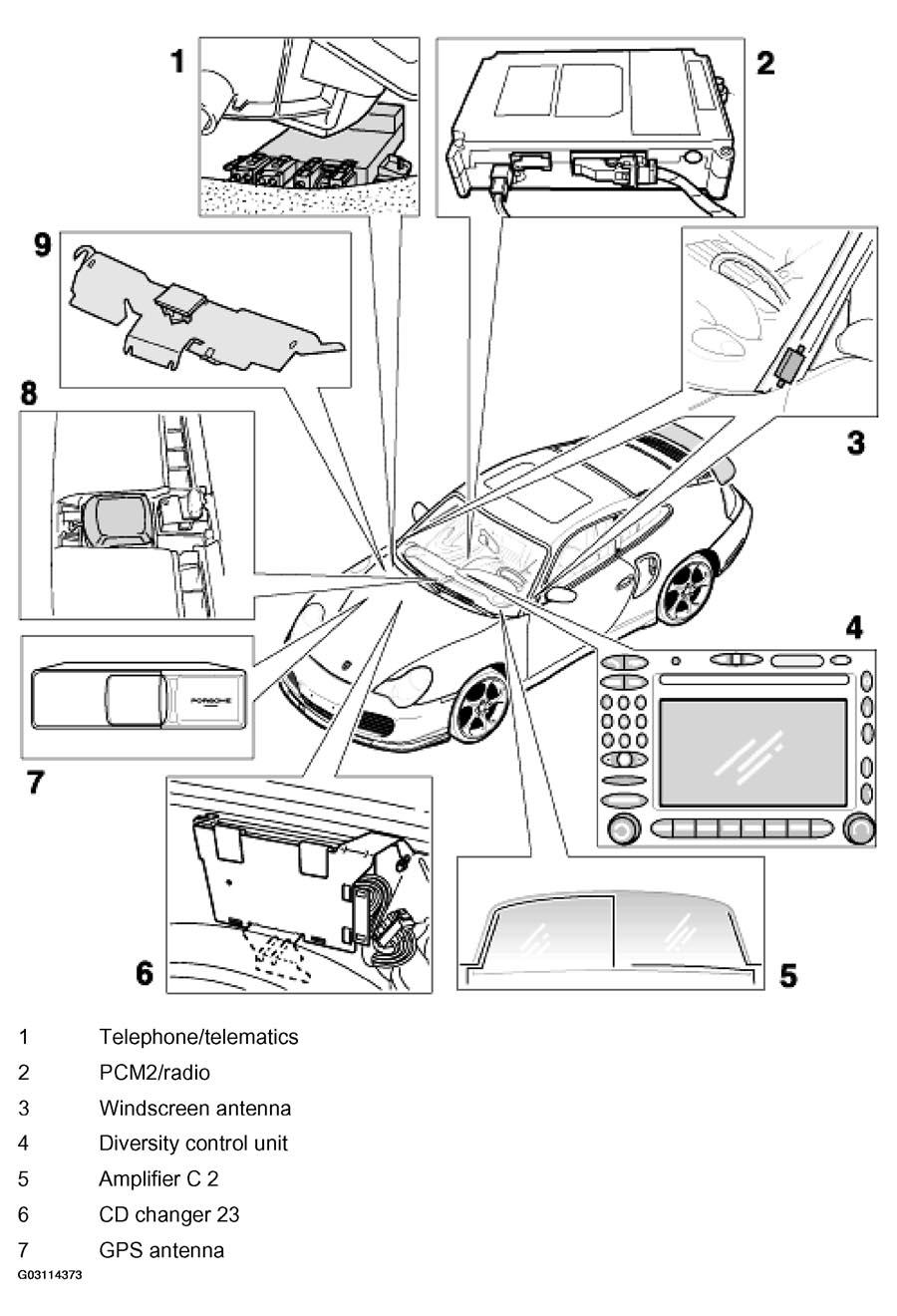

Component arrangement - CD changer

Fig 1: Identifying CD Changer Component Arrangement

Courtesy of PORSCHE OF NORTH AMERICA, INC.

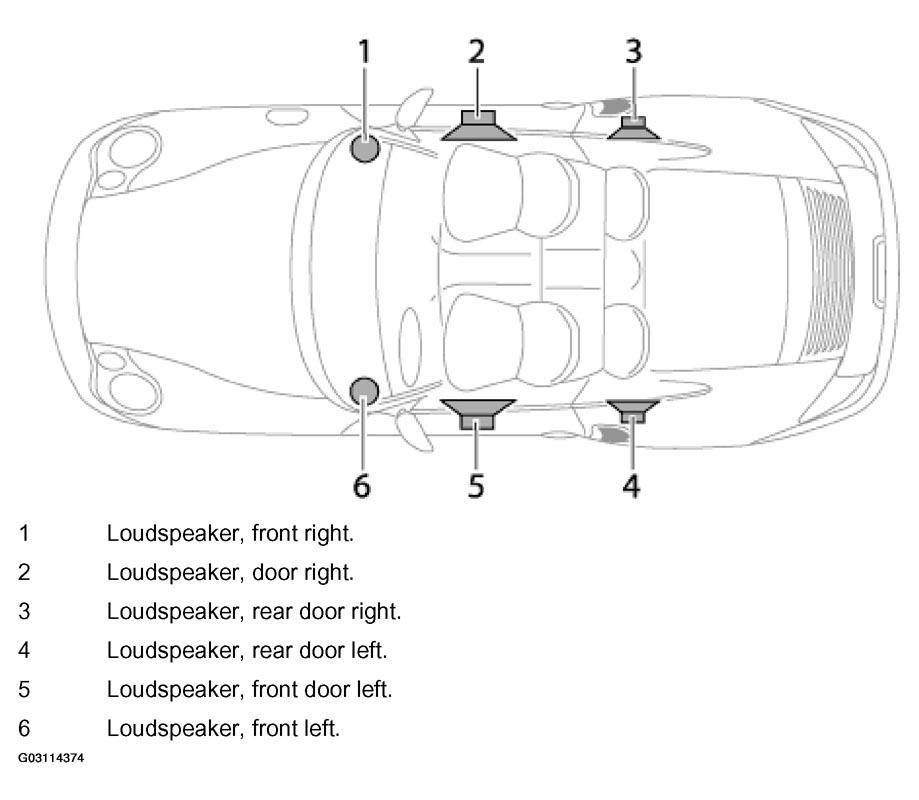

Loudspeaker basic system

Fig 2: Identifying CD Changer Loudspeaker Basic System

Courtesy of PORSCHE OF NORTH AMERICA, INC.

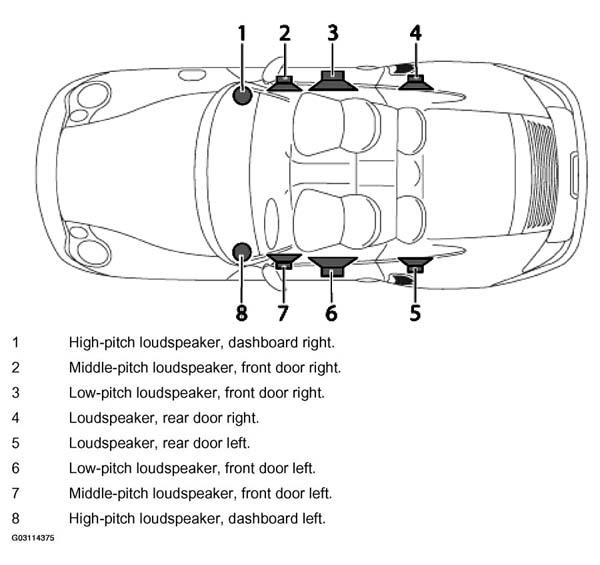

Loudspeaker sound package

Fig 3: Identifying CD Changer Loudspeaker Sound Package

Courtesy of PORSCHE OF NORTH AMERICA, INC.

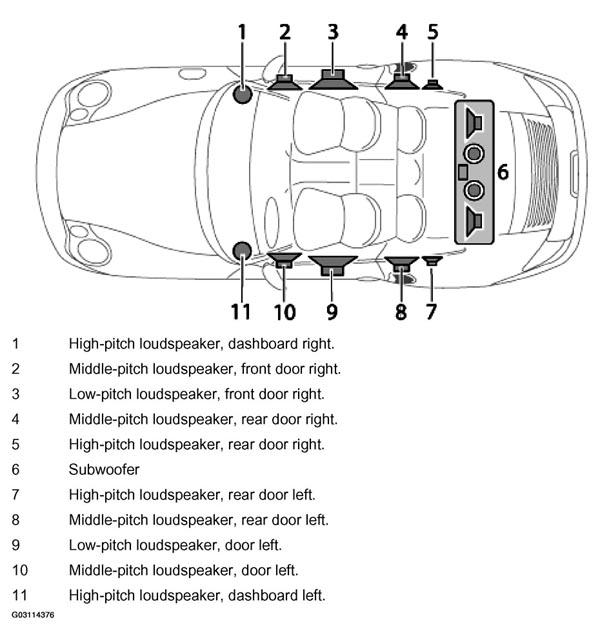

High-End loudspeaker

Fig 4: Identifying CD Changer High-End Loudspeaker

Courtesy of PORSCHE OF NORTH AMERICA, INC.
