Removing and installing sealing ring for input shaft: Installation
- Push assembly sleeve 9255 onto the toothing of the input shaft.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Fill the space between the dust and sealing lips on the sealing ring with grease (for example, Liqui - Moly).

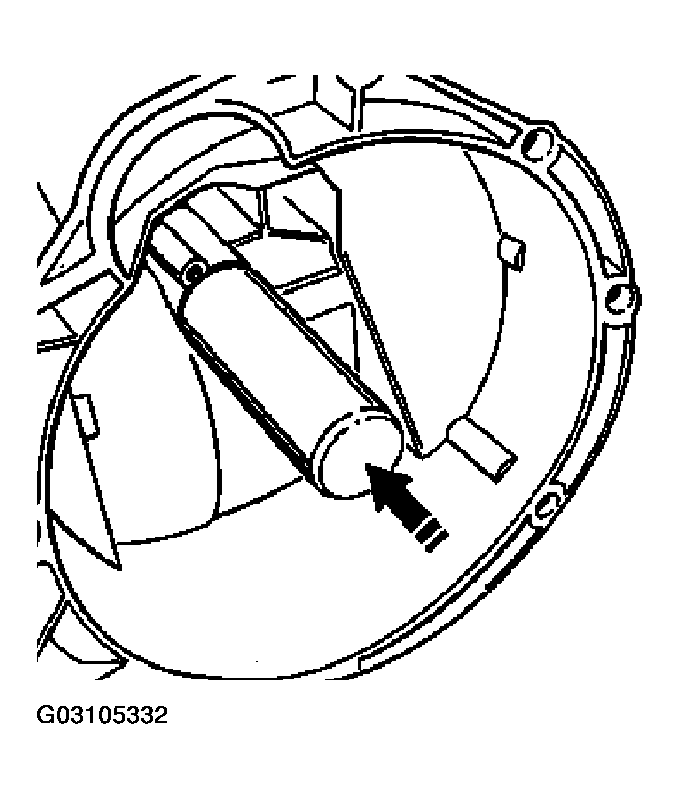

- Drive in sealing ring with special tool 9628 as far as the mounting face.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

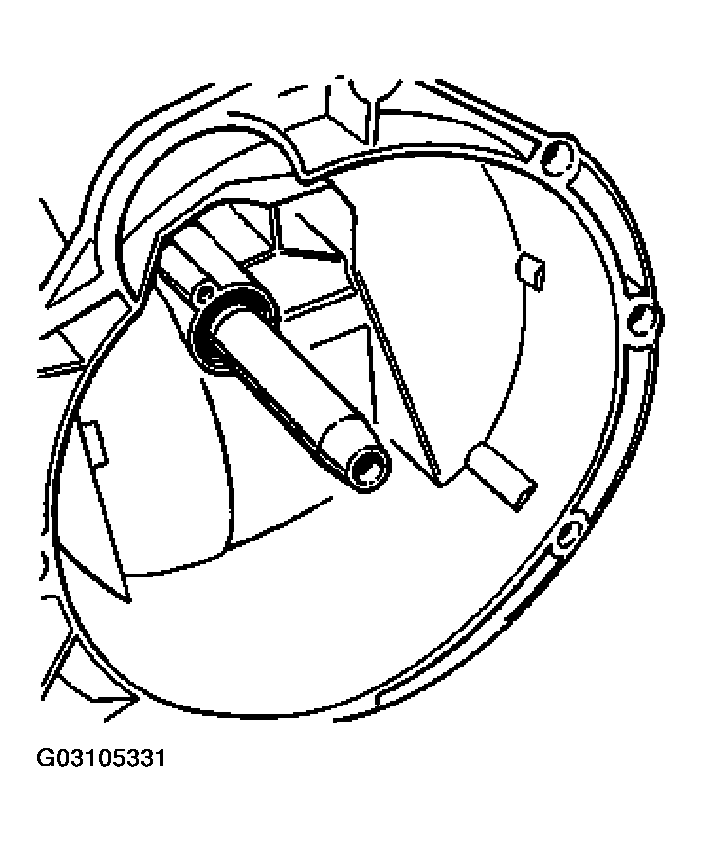

- Install guide tube for release bearing. Always renew fastening screws and tighten with 24 Nm (18 ftlb.)
- Fit release lever with release bearing.
- Clean teeth of the input shaft and grease with a thin coat of Olista Longtime 3 EP (available as spare part).
