Front axle

Measure from road contact surface to the lower edge of the hexagon-head bolt of the tension-strut screw connection to the body.

Nominal values for front and rear axles are given in ADJUSTING VALUES FOR SUSPENSION ALIGNMENT - 911 CARRERA  .

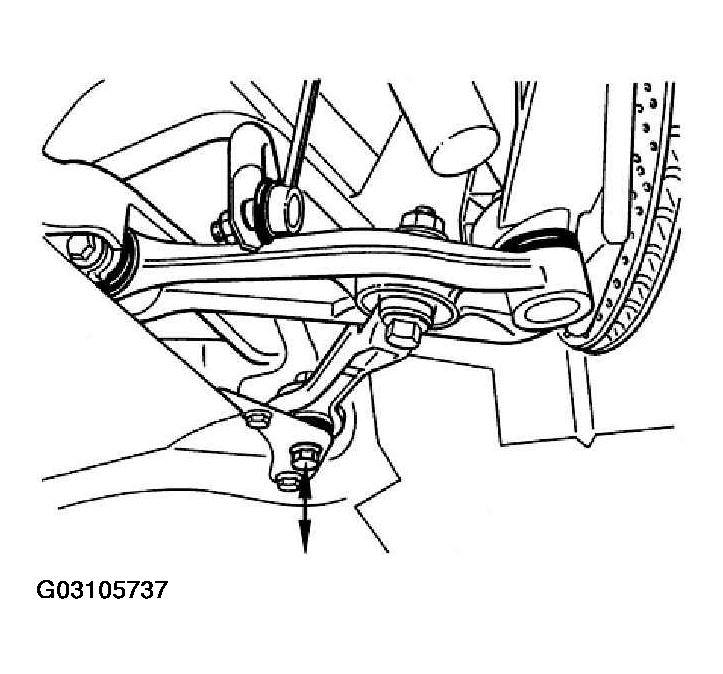

Fig 1: IdentifyingHexagon-Head Bolt Of The Tension-Strut Screw Connection To The Body (Front Axle)
G03105737Courtesy of PORSCHE OF NORTH AMERICA, INC.
