Adjusting camber

After loosening the lock nut, turn eccentric B appropriately.

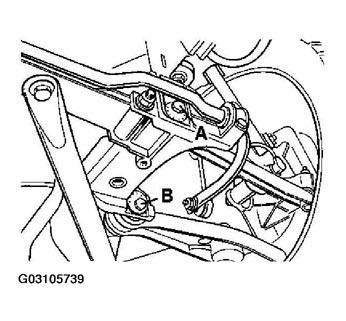

Fig 1: Adjusting Toe & Camber

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Use special tool 9626 in combination with a torque wrench to loosen and tighten the lock nuts of the toe and camber eccentrics. The prescribed lock nut tightening torque of 100 N.m (74 ftlb.) also corresponds to a setting on the torque wrench of approx. 100 N.m (74 ftlb.).

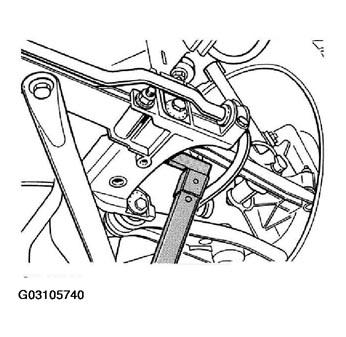

Fig 2: Adjusting Lock Nuts Of Toe And Camber Eccentrics

Courtesy of PORSCHE OF NORTH AMERICA, INC.
