Wheel mounting - Carrera: Notes

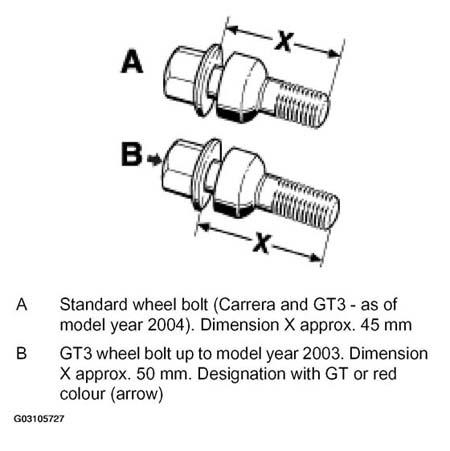

  1. The wheels of the Carrera as of model year 2004 are mounted with series wheel bolts -A-  M14 x 1.5 (length 45 mm) dimension -X-.  Refer to Figure .
  2. The longer wheel bolts -B-  M14 x 1.5 (length 50 mm) dimension -X-  are used for GT3 - up to model year 2003.
