Alignment card - 911 Carrera (996)

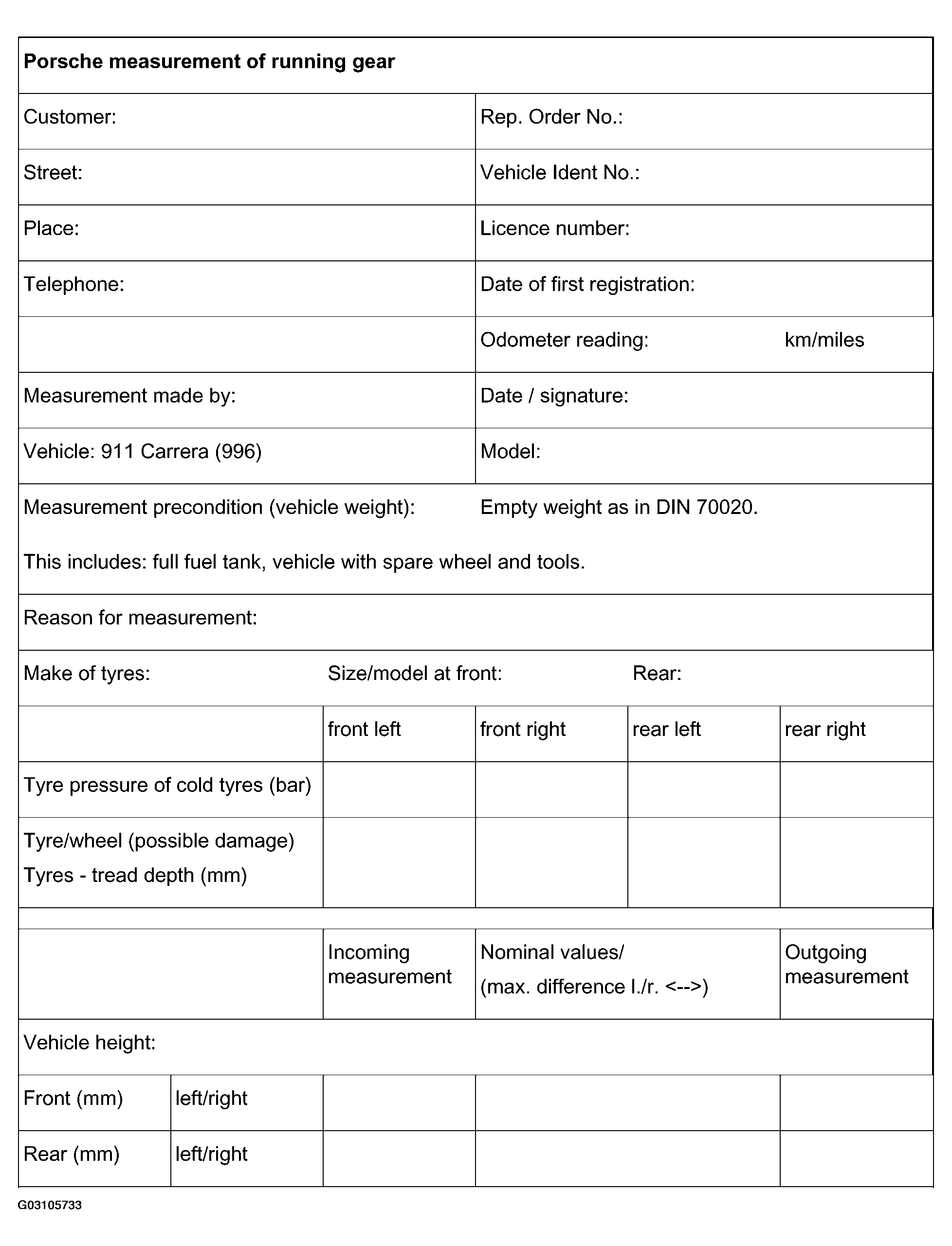

Fig 1: Identifying Alignment Card - 911 Carrera (996)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Since mainly electronic wheel-alignment testers in conjunction with printers are used, a specimen alignment card is rarely required nowadays. In order for measured results to be documented in individual cases, however, a copy of the alignment card shown above can be used.

NOTE:

In practice this means that alignment cards cannot be ordered!
The alignment cards can be used for 911 Carrera (996) and 911 Carrera 4, USA and RoW!

Prepare copies of the corresponding alignment card shown.
Before measurement, enter the general data, vehicle model and the missing nominal values into the copied alignment card.
NOTE: Actual values that are identical in all designs have already been entered! This is only partially valid in the case of the 911 Carrera with 30 mm lower running gear (X74). As a result, if the running gear is 30 mm lower, the values already entered into the alignment card may sometimes have to be changed!
Enter the appropriate version - USA or RoW and 30 mm lower (X74) into the column.
Carry out incoming measurement (actual status) and enter the values in the alignment card.
After adjustments (if these were necessary), enter the actual values in the column Outgoing measurement.
