Body parts of high-strength steel

The indicated body parts attain their final strength only under the temperature effects of the production stage of cathodic immersion painting and drying.

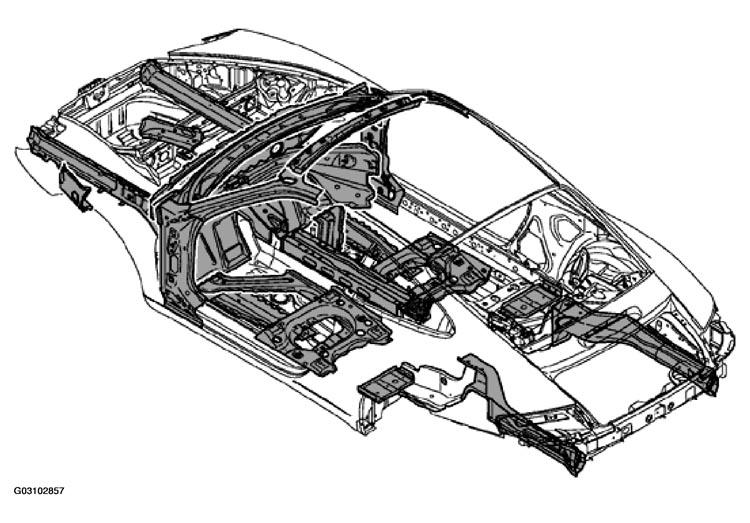

Fig 1: Identifying Parts Of High-Strength Steel Under Temperature Effects
G03102857Courtesy of PORSCHE OF NORTH AMERICA, INC.

Body repairs by means of reshaping are not possible if these body parts are correspondingly deformed. Here, the repair must be carried out using new parts or by means of sectional repairs.

The use of high-strength steels for the body has an effect on body repairs. For this reason, only "Original Porsche parts" must be used for repair work.
