Removing and installing mechanical heating and fresh-air control: Removal

  1. Carefully unclip baffle from the heating and fresh-air control.
  2. Unscrew fastening screws (4 ea.) and pull control module out of the dashboard.
  3. Pull off electrical plug connections. Unclip Bowden cables and pull out upwards or detach cables. Label Bowden cables before removal.

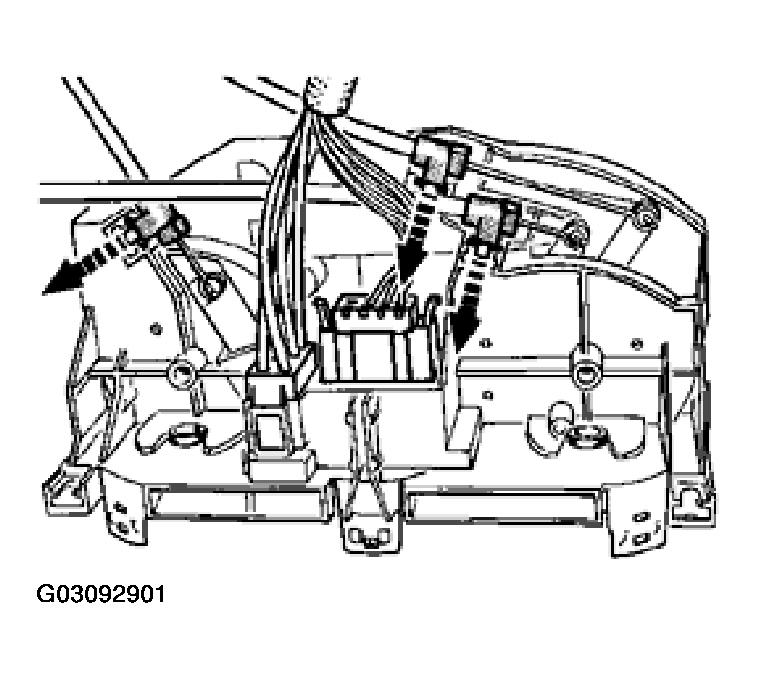

    Fig 1: Pulling Off Electrical Plug Connections From Heating And Fresh-Air Control
    G03092901Courtesy of PORSCHE OF NORTH AMERICA, INC.
