Removing and installing heater/fresh-air blower motor: Removal

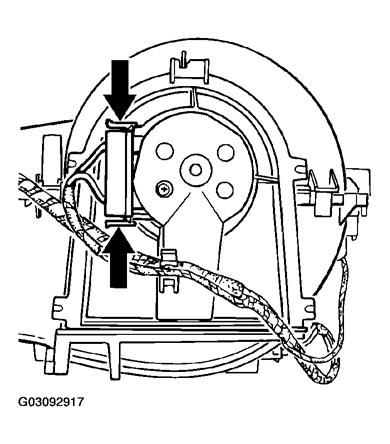

Remove footwell bulkhead and right air guide. Pull off electrical plug connection on the blower motor and remove wire from the holder. Fig 1 shows the heating/fresh-air unit when removed.

Fig 1: Pulling Off Electrical Plug Connection On The Blower Motor
Courtesy of PORSCHE OF NORTH AMERICA, INC.

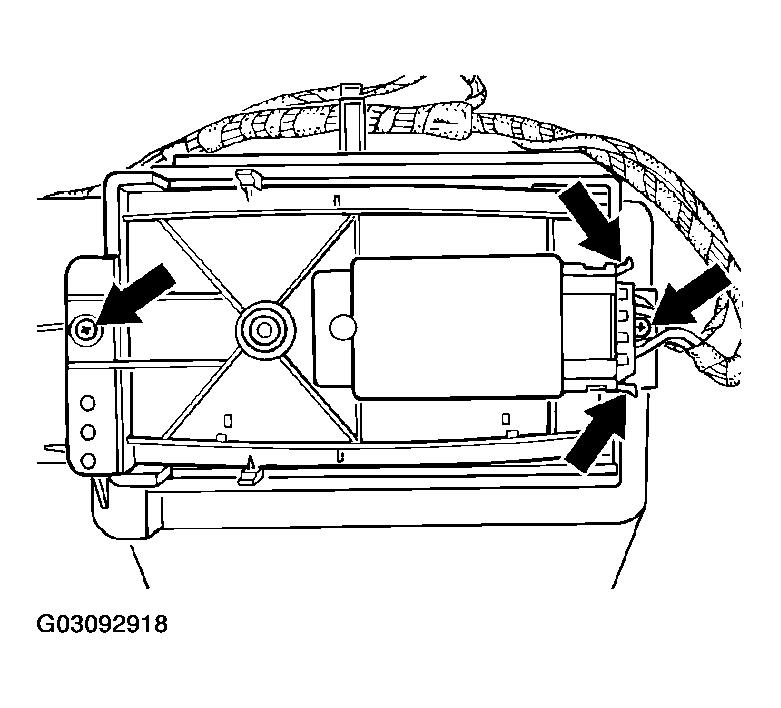

Pull off electrical plug connection on the ballast resistor and undo both fastening screws on the housing lid. The ballast resistor and housing lid are a spare part.

Fig 2: Pulling Off Electrical Plug Connection On Ballast Resistor & Undoing Fastening Screws On Housing Lid
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

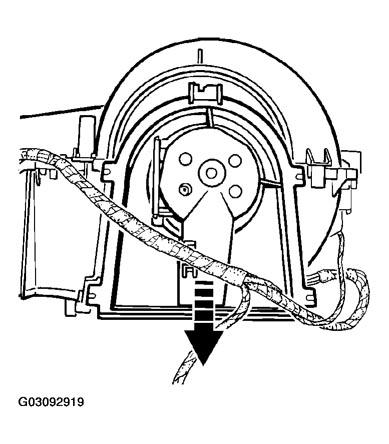

When the housing lid is removed, the blower motor is simultaneously detached from its guide. Hold the blower motor and carefully remove it in downward direction.

Fig 3: Removing Blower Motor In Downward Direction
