Removing and installing drive motor for fresh-air/recirculation valve: Removal

  1. The recirculation button must be pressed before removal (fresh-air supply blocked). The drive motor of the installed heating/fresh-air unit can be removed in this position (recirculation).
  2. Remove footwell bulkhead and right air guide. Disconnect electrical plug connection of the drive motor and undo fastening screw.

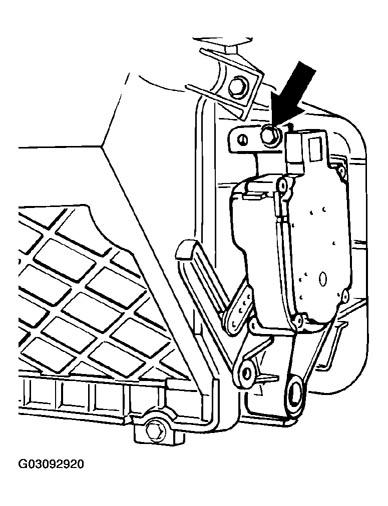

    Fig 1: Removing Footwell Bulkhead And Right Air Guide
    G03092920Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Swivel down the drive motor and remove it to the side.
NOTE:
  • If the rotary knob for air distribution is set to Defrost (windscreen) with the recirculation button switched on, the recirculation button is automatically switched off.
