Removing and installing bulb for rotary blower switch: Removal

  1. Pull off rotary blower switch.
  2. Pull out bulb. The bulb can be pulled out by pushing a connecting hose of a vacuum line onto it.

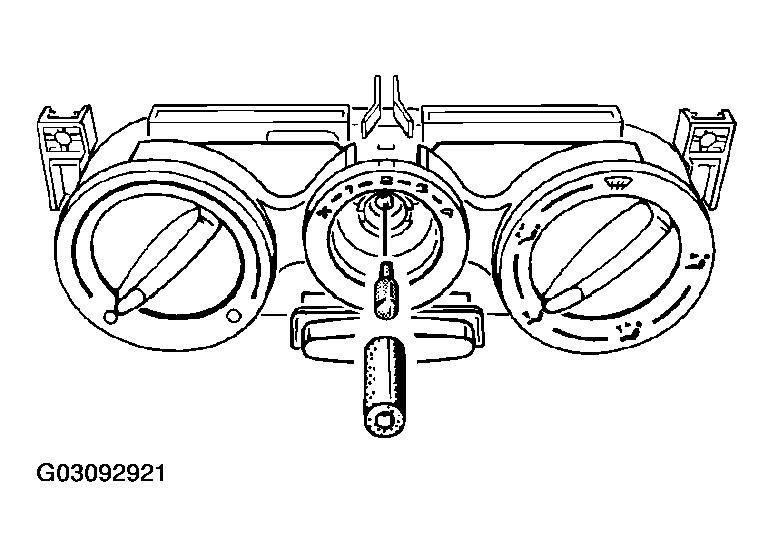

    Fig 1: Pulling Out Bulb For Rotary Blower Switch
    G03092921Courtesy of PORSCHE OF NORTH AMERICA, INC.
