Installing and adjusting bowden cables of the heating/fresh-air control: Notes

NOTE: Install the heading/fresh-air control with installed bowden cables. The sleeves of the bowden cables are adjusted at the fastening points on the heating/fresh-air unit.

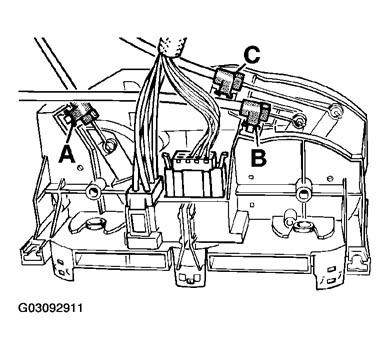

Fig 1: Installing Heading/Fresh-Air Control With Installed Bowden Cables

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A Bowden cable, temperature valve

B Bowden cable, footwell/defrost valve

C Bowden cable, central valve
