Adjusting temperature valve

  1. Turn temperature control to left-hand stop (cold). Temperature valve closed; no passage to the heat exchanger.

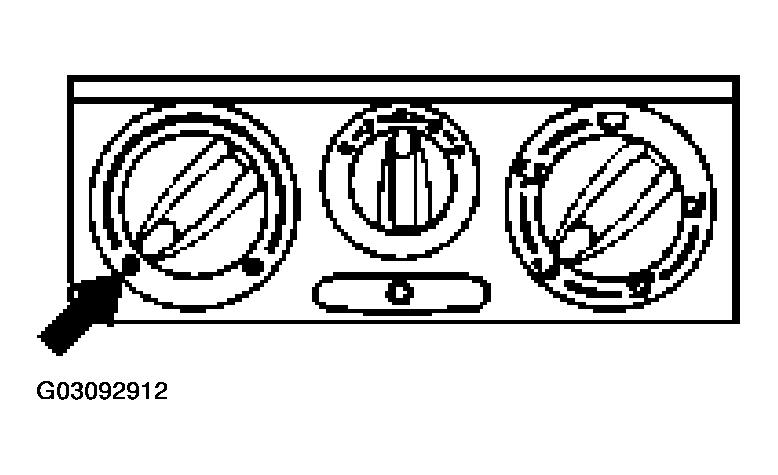

    Fig 1: Identifying Temperature Valve
    G03092912Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Engage bowden cable in the adjusting lever.
  3. Push adjusting lever of the temperature valve up to its stop and use the retaining clip to fasten the sleeve of the bowden cable on the fastening point.

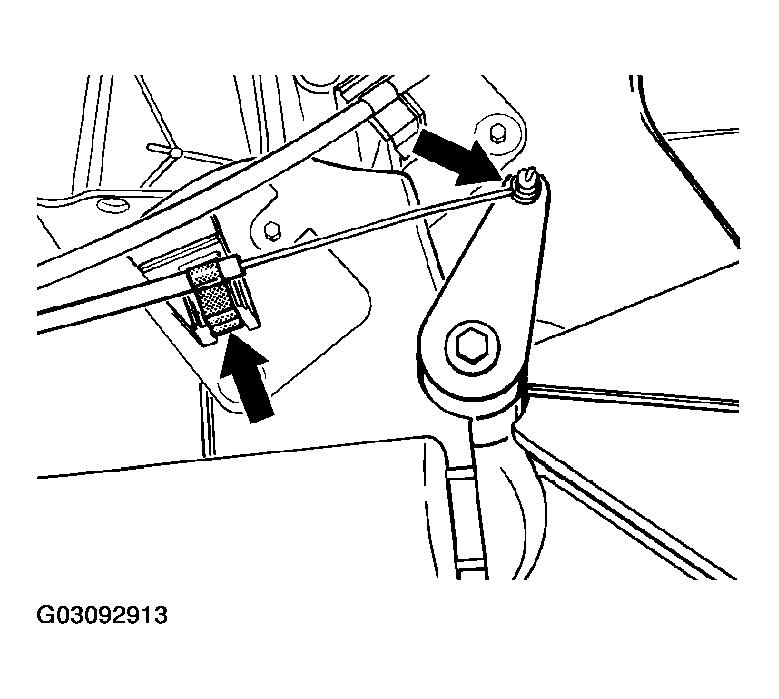

    Fig 2: Pushing Adjusting Lever Of Temperature Valve
    G03092913Courtesy of PORSCHE OF NORTH AMERICA, INC.
