Component arrangement - as of MY 2002

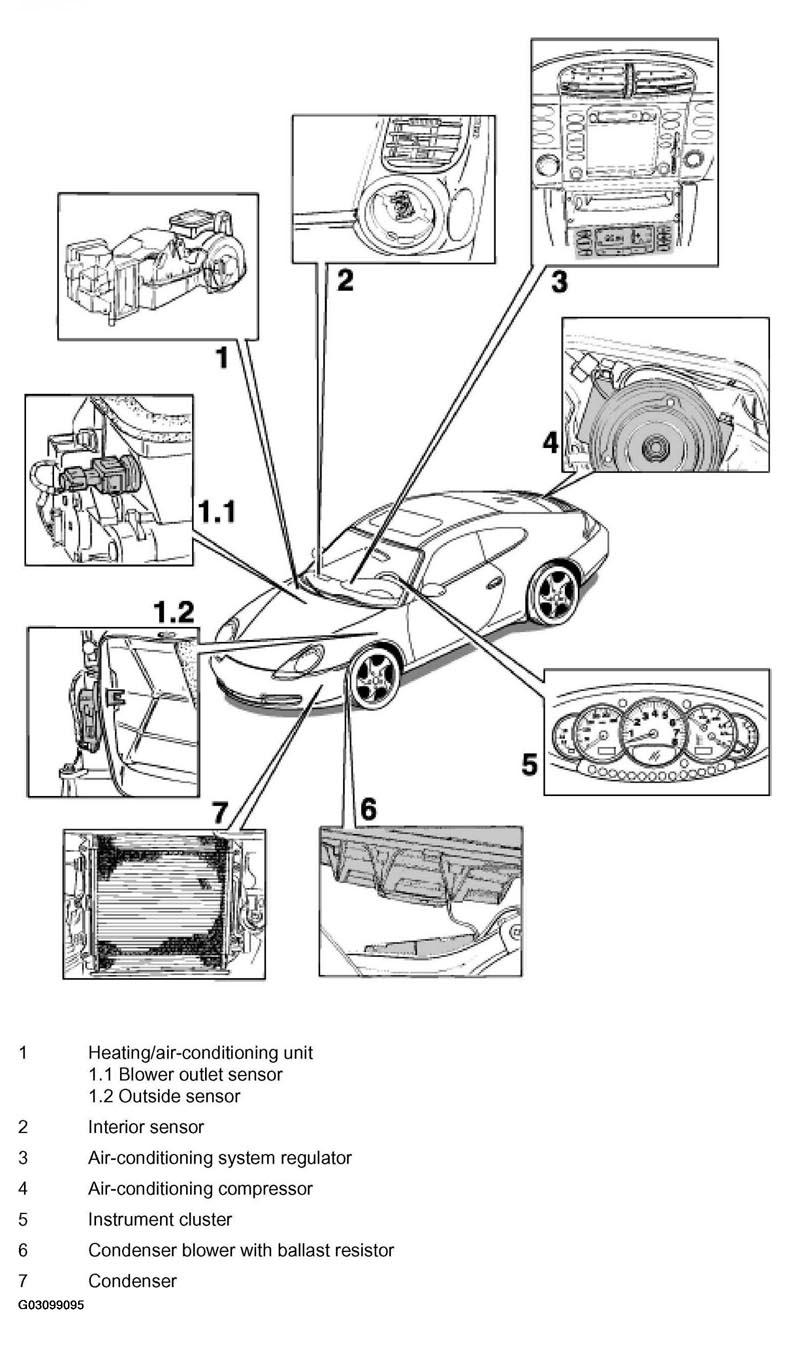

Fig 1: Identifying Heating/Air Conditioning Components Arrangement (As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Heating/air-conditioning unit
   1. 1.1 Blower outlet sensor
   2. 1.2 Outside sensor
2. Interior sensor
3. Air-conditioning system regulator
4. Air-conditioning compressor
5. Instrument cluster
6. Condenser blower with ballast resistor
7. Condenser
