Tightening torques
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - CONVERTIBLE-TOP FRAME FASTENER
| Location | Illustration | Thread | Tightening torque [Nm] (ftlb.) |
|---|---|---|---|

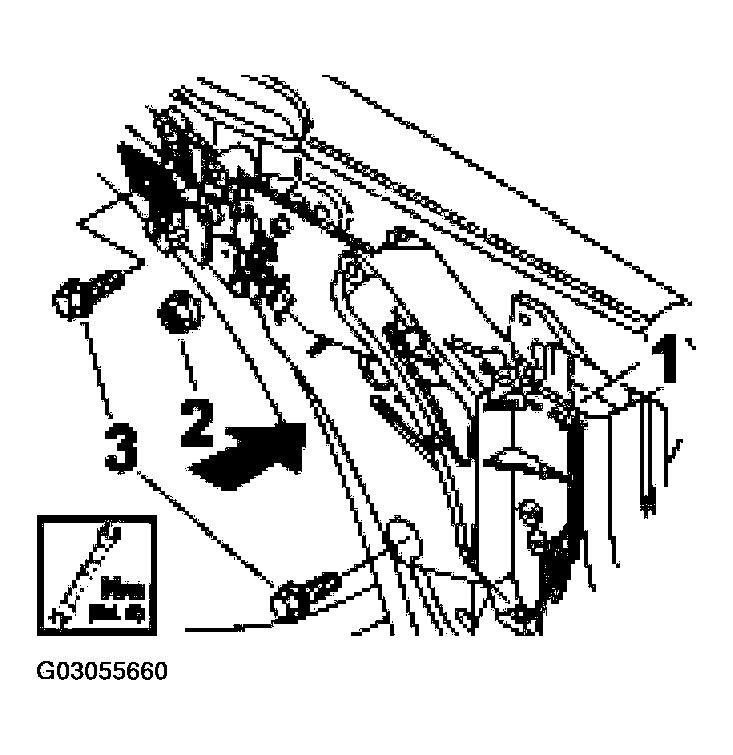

| Fastening screws of convertible-top support on inner side section | Procedure No. 1, item -3- . See Figure. | M8 | 23 (17) Nm (ftlb.) |
| Fastening nut of convertible-top support on inner side section | Procedure No. 1, item -2- . See Figure. | M8 | 23 (17) Nm (ftlb.) |

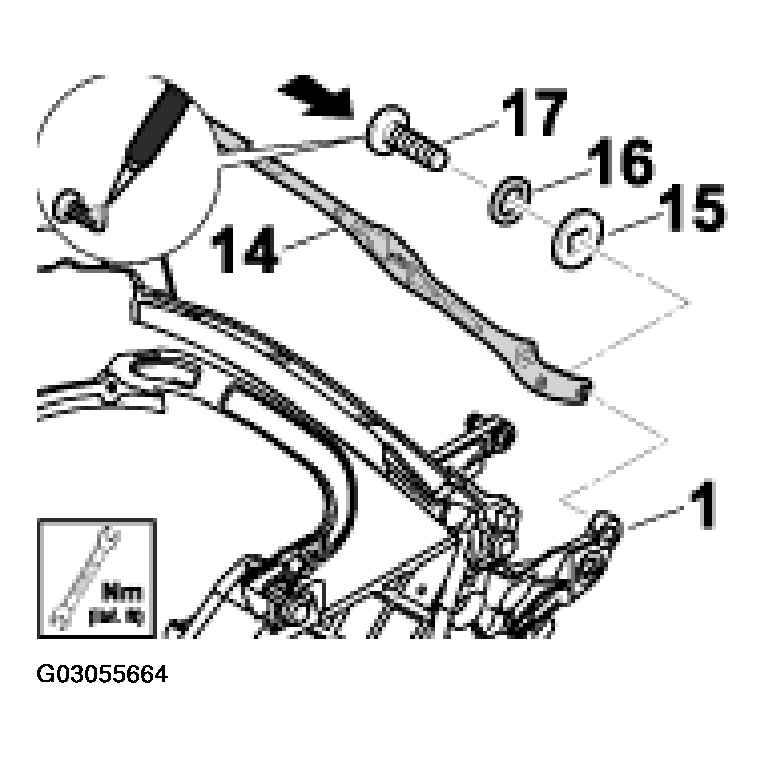

| Fastening screw of main bow on convertible-top support | Procedure No. 5, item -17- . See Figure. | M6 | 9 (6.5) Nm (ftlb.) |

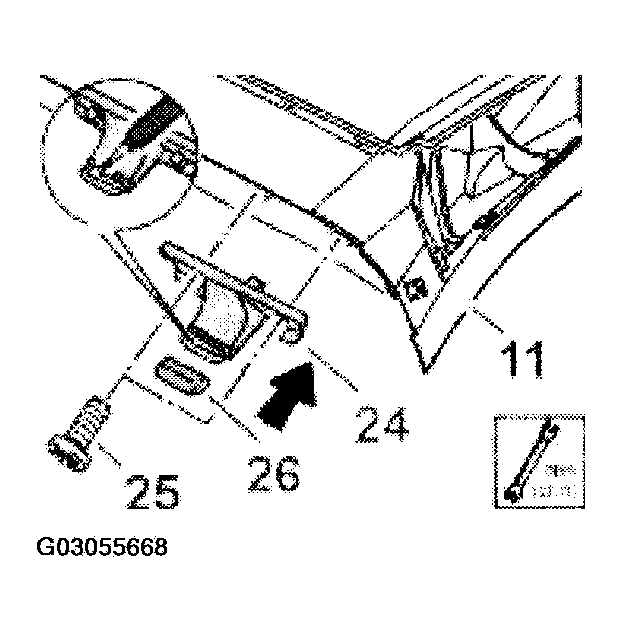

| Fastening screws of centring pegs on roof frame 1 | Procedure No. 9, item -25- . See Figure. | 7 (5) Nm (ftlb.) | |
| Fastening screws of wedge on main bow | Procedure No. 10, item -28- . See Figure. | M5 | 2.8 (2) Nm (ftlb.) |
| Bracket or plastic bracket fastening screws on roof frame 3 | Procedure No. 12, item -33- . See Figure. | M5 | 2.8 (2) Nm (ftlb.) |
| Potentiometer fastening screws on convertible-top support | Procedure No. 15, item -35- . See Figure. | 2.8 (2) Nm (ftlb.) | |
| Fastening screws of tension strap on roof frame 1 | Procedure No. 18, item -42- . See Figure. | 5 (3.5) Nm (ftlb.) | |
| Fastening screws of plastic panel on roof frame 1 | Procedure No. 22, item -45- . See Figure. | 5 (3.5) Nm (ftlb.) | |
| Draught deflector fastening screws on styling frame | Procedure No. 24, item -47- . See Figure. | 1.7 (1.5) Nm (ftlb.) | |
| Styling frame fastening screws on roof frame 3 | Procedure No. 24, item -49- . See Figure. | M 3 | 1.7 (1.5) Nm (ftlb.) |
| Fabric guide plate fastening screws on styling frame | Procedure No. 25, item -52- . See Figure. | 1.7 (1.5) Nm (ftlb.) | |
| Styling frame fastening screws on roof frame 2 | Procedure No. 25, item -53- . See Figure. | M 6 | 9 (6.5) Nm (ftlb.) |
| Aluminium profile fastening screws on roof frame 3 | Procedure No. 26, item -55- . See Figure. | M 3 | 1.7 (1.5) Nm (ftlb.) |
| Aluminium profile fastening screws on roof frame 2 | Procedure No. 27, item -58- . See Figure. | M 3 | 1.7 (1.5) Nm (ftlb.) |
