Additional assembly instructions for installing tension strap as of model year 2002 (convertible top with glass window)

WARNING: This page is about a different variant/trim than selected.

Installing tension strap and bracing strap on the tension bow

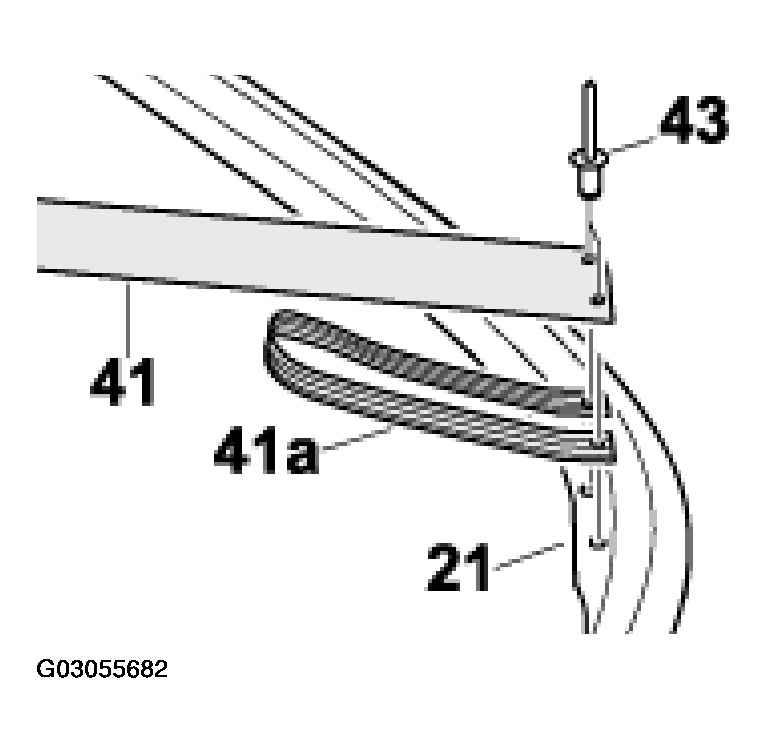

Fig 1: Installing Tension Strap And Bracing Strap On Tension Bow - As Of Model Year 2002 (Convertible Top With Glass Window)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Position the bracing strap -41a- as illustrated. See Fig 1.

Position tension strap -41- and bracing strap -41a- on the holes provided on the tension bow -21- , rivet on the tension strap -41- with the pop rivets -43- (parts scope component of convertible-top covering). See Fig 1.
