Installing styling frame: Notes

WARNING: This page is about a different variant/trim than selected.

Installing styling frame on roof frame 3
1. Screw on draught deflector -46- on the front face of the styling frame -48- with the fastening screw -47- . See Fig 1.
  Tightening torque: 1.7 Nm (1.0 ftlb.)
2. Position styling frame on roof frame 3 -8- and tighten with fastening screws -49- . See Fig 1.
  Tightening torque: 1.7 Nm (1.0 ftlb.)

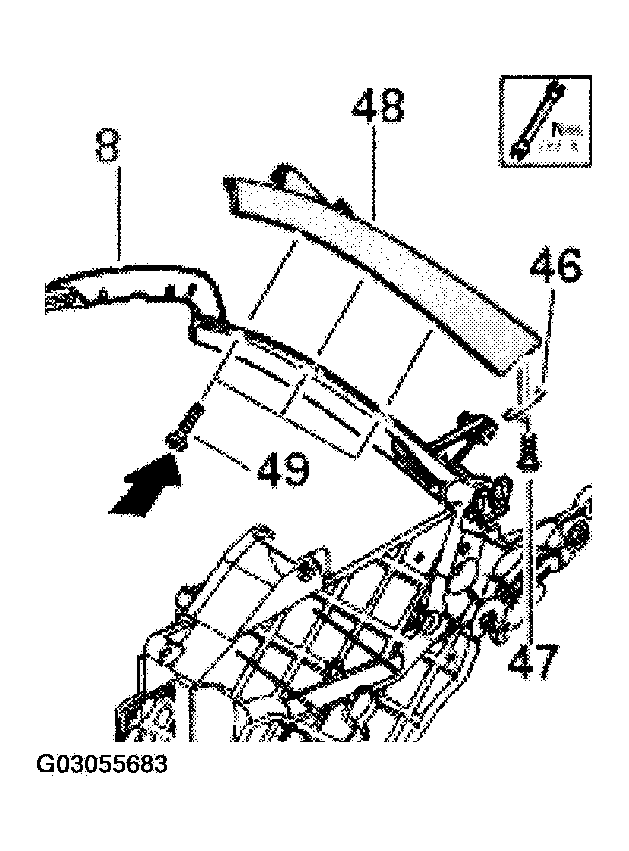

Fig 1: Installing Styling Frame On Roof Frame 3
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing styling frame on roof frame 2
1. Screw on fabric guide plate -50- and styling frame -51- with the Torx screws T 15 -52- and the washers -52a- . See Fig 2.
  Tightening torque: 1.7 Nm (1.0 ftlb.)
2. Position styling frame -51- on roof frame 2 -5- . Adjust gap dimension -A = 3.1 ^+0.5 - between styling frames 2 and styling frame 3 -48- . Screw on fastening screws -53- and the washers -53a- . See Fig 2.
  Tightening torque: 9 Nm (7.0 ftlb.)

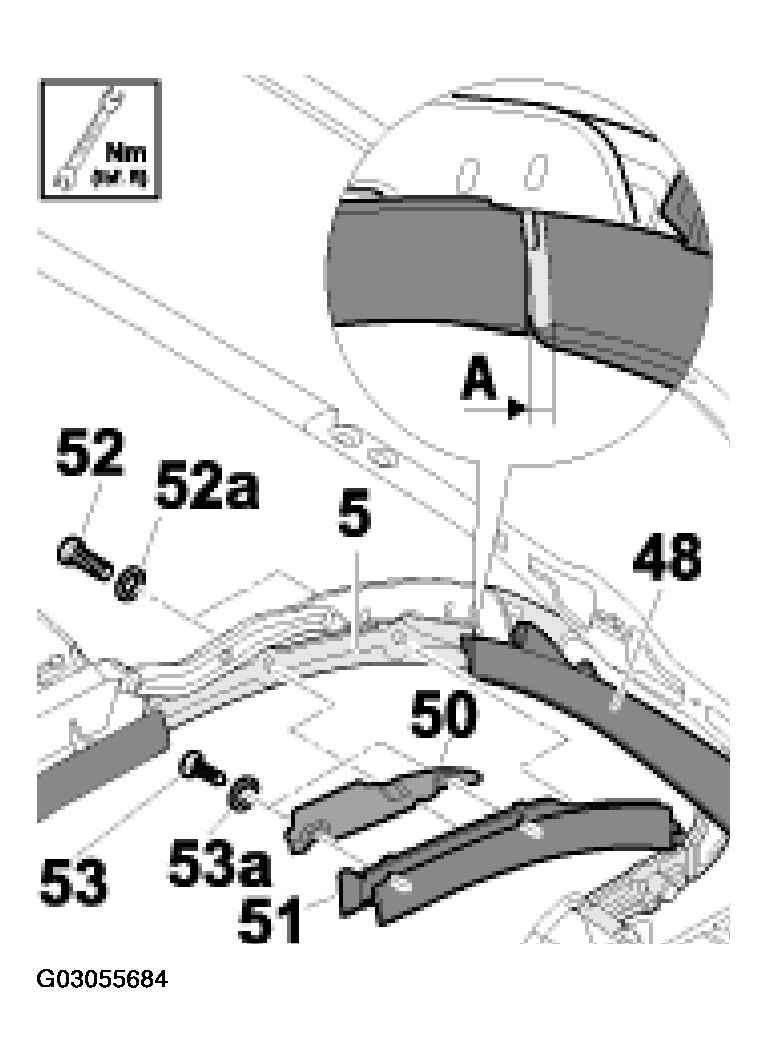

Fig 2: Installing Styling Frame On Roof Frame 2
Courtesy of PORSCHE OF NORTH AMERICA, INC.
