Installing seals on the styling frame

1. Position aluminium profile -54-  on the styling frame -48-  and screw on with the fastening screws -55-  . See Fig 1.
2. Insert the seal -56-  into the aluminium profile -54-  . See Fig 1.

Tightening torque: 1.7 Nm (1.0 ftlb.)

Fig 1: Installing Seal On Styling Frame (Roof Frame 3)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position aluminium profile -57-  on the styling frame -51-  and screw on with the fastening screws -58-  . See Fig 2.
2. Insert the seal -59-  into the aluminium profile -57-  . See Fig 2.

Tightening torque: 1.7 Nm (1.0 ftlb.)

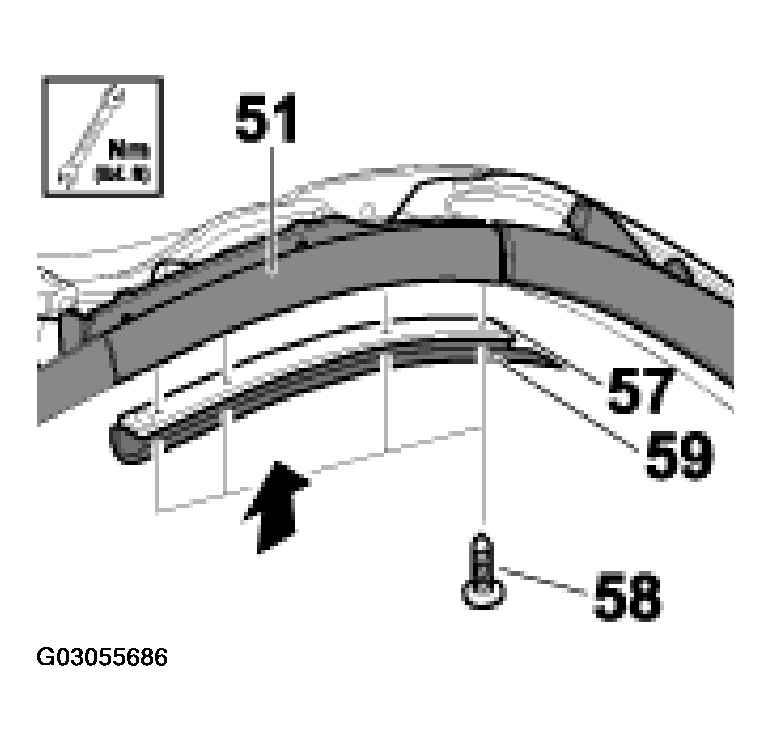

Fig 2: Installing Seal On Styling Frame (Roof Frame 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
