Installing electrical wiring harness: Notes

1. Clip the fastened clips on the convertible-top wiring harness -30-  into the holes provided on roof frame 1 -11-  (clipped in 3 positions). See Fig 1.
2. Clip the fastened clips on the wiring harness -30-  into the holes provided on roof frame 3 -8-  (clipped in 2 positions). See Fig 1.

Dimension -inset X-  up to model year 2001. See Fig 1.

Position angle on roof frame 3 and screw in with the fastening screws -33-  . Fit rubber sleeve -31a-  and plastic cover -31b-  on the bracket -31-  . See Fig 1.

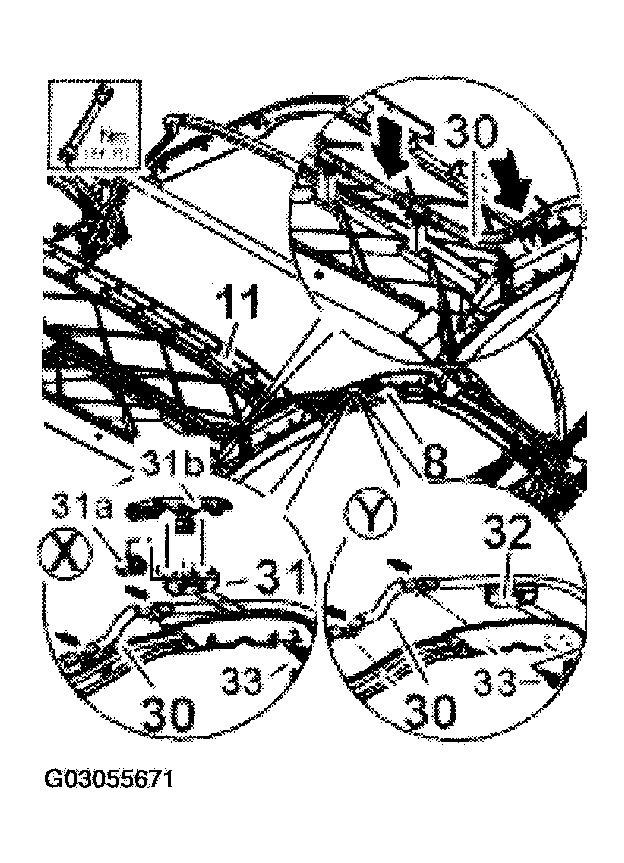

Fig 1: Installing Wiring Harness On Roof Frame 1 And 3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque: 2.8 Nm

Dimension -inset Y-  as of model year 2002. See Fig 1.

Position plastic bracket -32-  on roof frame 3 and screw in with the fastening screws -33-  . See Fig 1.

Tightening torque: 2.8 Nm

1. Clip wiring harness -30-  into the holes provided on the convertible-top support -1-  . Refer to Fig 2.

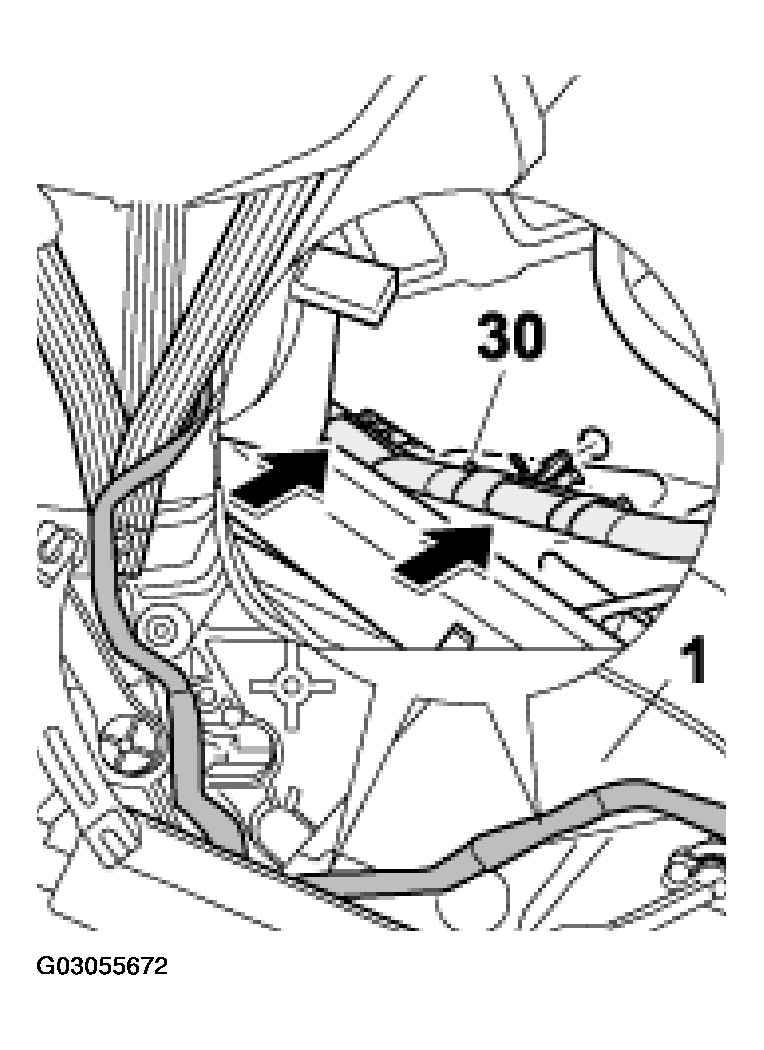

Fig 2: Installing Wiring Harness On Convertible Top Support (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clip wiring harness -30-  into the holes provided on the convertible-top support -1-  . Refer to Fig 3.

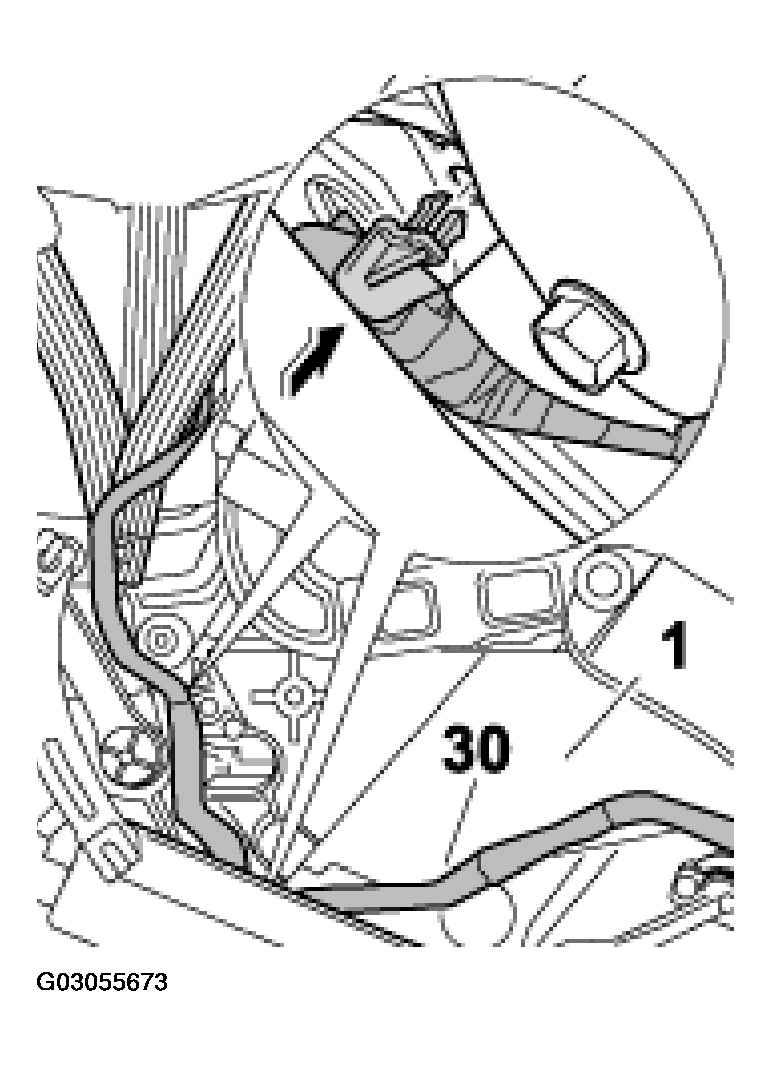

Fig 3: Installing Wiring Harness On Convertible Top Support (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert potentiometer fork into the pins of the hydraulic housing.
2. Position potentiometer -34-  on the convertible-top support -1-  and tighten with the fastening screws -35-  . See Fig 4.

   Tightening torque: 2.8 Nm (2.0 ftlb.)

3. Insert the wiring harness -30-  into the fastening clips -36-  on the convertible-top support -1-  . See Fig 4.

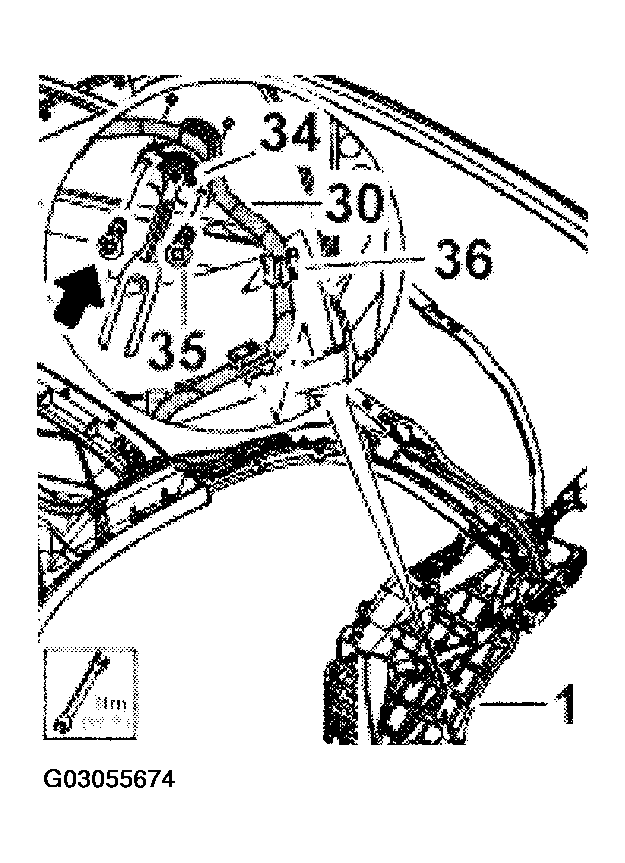

Fig 4: Installing Potentiometer

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Connect electrical plug connection -37  .

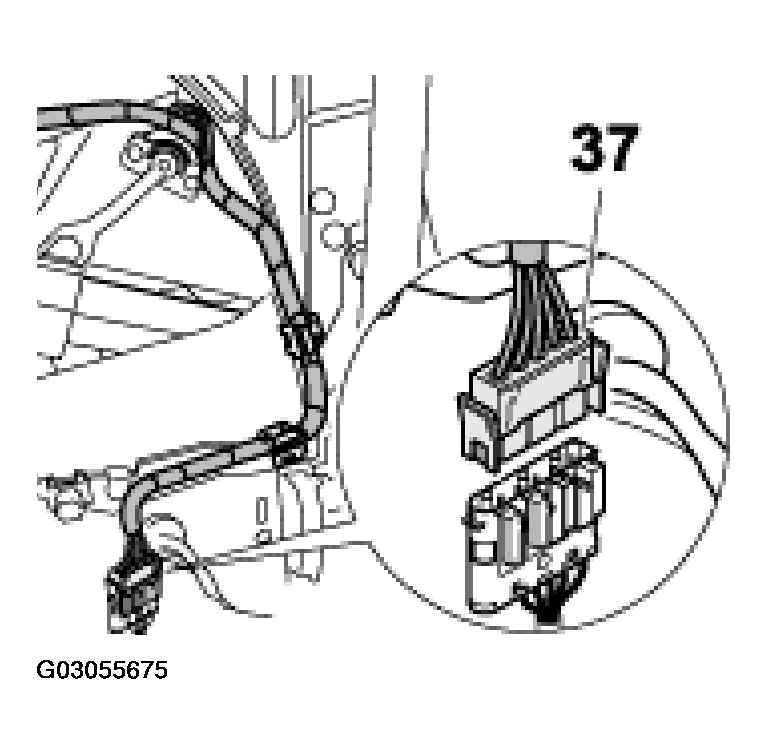

Fig 5: Connecting Electrical Plug Connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.
