Additional assembly instructions for installing electrical wiring harness as of model year 2002 (convertible top with glass window)

WARNING: This page is about a different variant/trim than selected.

Installing wiring harness of rear window heating
1. Lay wiring harness as shown in the illustration.
2. Fit the tie-wrap -38- . See Fig 1.
3. Position the fastening clips -40- and tighten with the fastening screws -39- . See Fig 1.

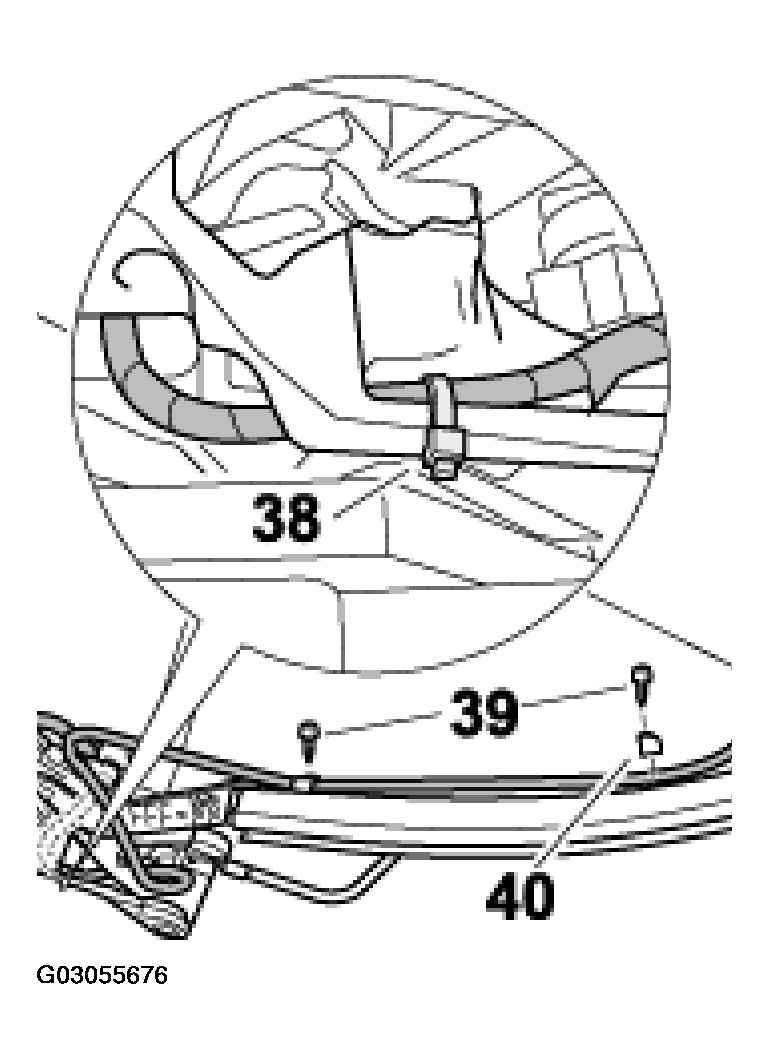

Fig 1: Installing Wiring Harness Of Rear Window Heating - As Of Model Year 2002 (Convertible Top With Glass Window)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
