Replacing convertible-top covering with glass rear window: Notes

WARNING: This page is about a different variant/trim than selected.

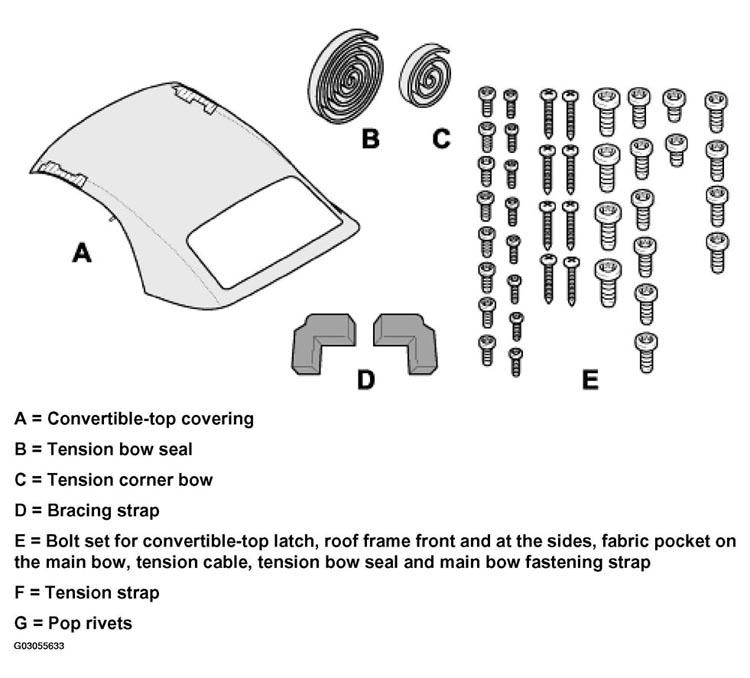

Fig 1: Identifying Convertible-Top Covering With Glass Rear Window Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The aforementioned convertible-top covering spare parts are required for replacement of the convertible-top covering.
The spare parts contained in the convertible-top covering scope of parts must always be replaced.
The flexible rear window is not included in this scope of parts.
The convertible-top covering must be replaced at a room temperature of at least 15°C (59 Fahrenheit).

The roof lining must be removed before removing the convertible-top covering. Refer to REMOVING AND INSTALLING CABRIOLET ROOF TRIMS - AS OF MY 2002 .

CAUTION: Avoid damage to or destruction of the tension bow seal.

The following procedure Convertible top in service position must be observed!

Move convertible top to the rear by means of the electric motor until the convertible-top compartment lid has reached the rear end position. Move convertible top forward by means of the electric motor until the convertible-top compartment lid moves forward, then interrupt closing operation. Disengage left and right tension cables and fold up the tension bow. The convertible top must no longer be electrically operated in this position.
