Tightening torques
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - CONVERTIBLE-TOP COVERING (WITH FLEXIBLE REAR WINDOW) FASTENER
| Location | Illustration | Thread | Tightening torque [Nm] (ftlb.) |
|---|---|---|---|

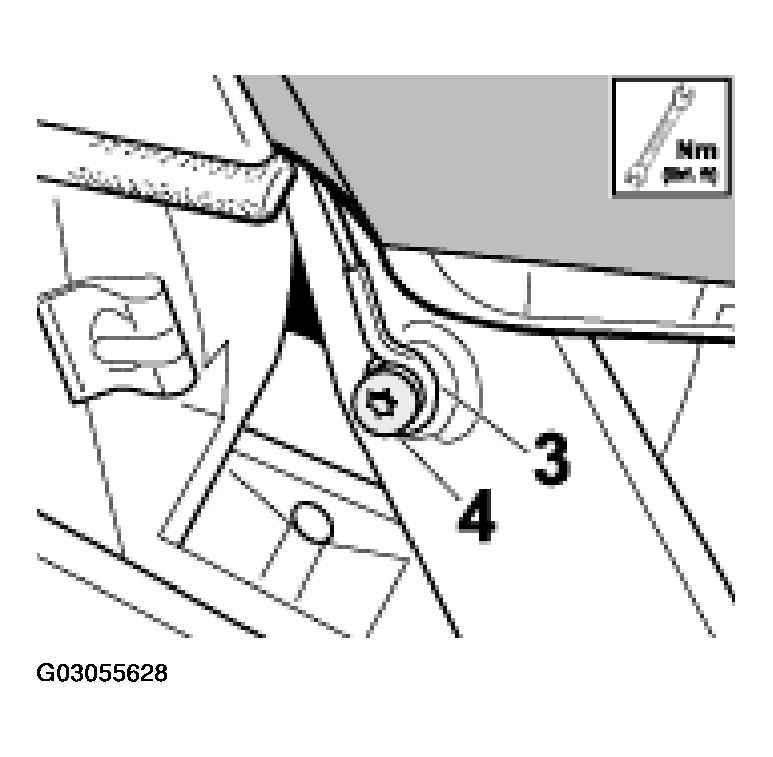

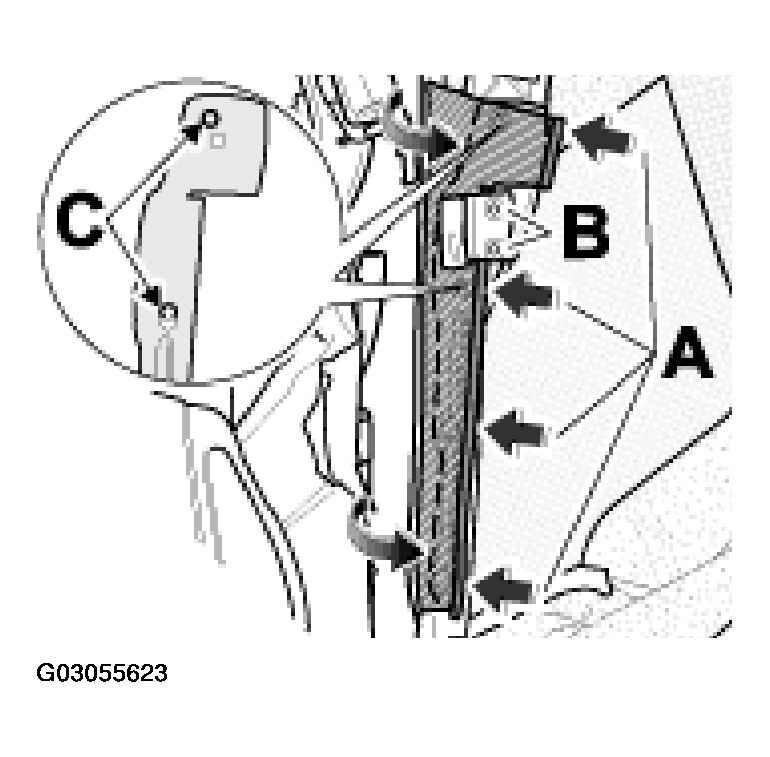

| Fastening screws of shaped sheetmetal part on main bow | For installation, procedure No. 4 item -B- . See Figure. | M 3.5 | 1.7 (1.5) Nm (ftlb.) |

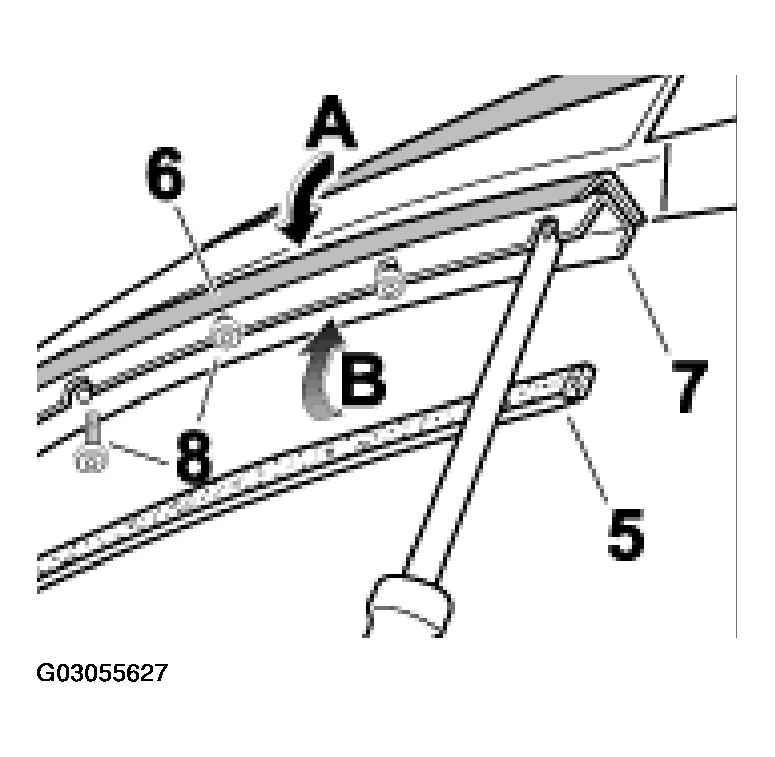

| Fastening screws of wedge on main bow | For installation, procedure no. 4 item -A- . See Figure. | M5 | 2.8 (2) Nm (ftlb.) |

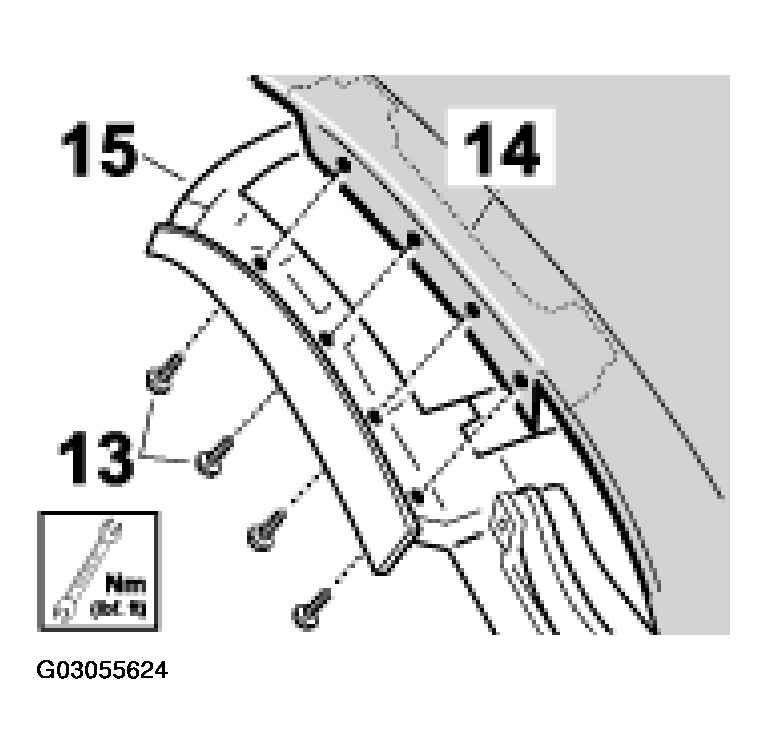

| Fastening screws of shaped sheetmetal part of convertible top covering on roof frame 1 | For installation, procedure No. 5, item -13- . See Figure. | 5 (3.5) Nm (ftlb.) | |
| Fastening screws of convertible-top seal on roof frame 1 | For installation, procedure No. 7, item -11- . See Figure. | 1.7 (1.5) Nm (ftlb.) | |

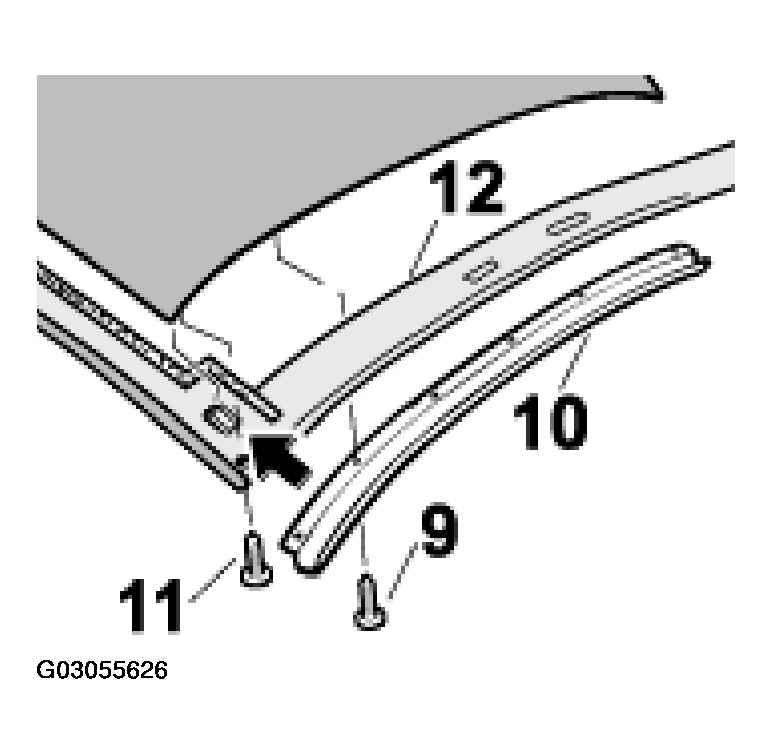

| Fastening screws of retaining rail on roof frame 1 | For installation, procedure No. 7, item -9- . See Figure. | 3.5 (2.5) Nm (ftlb.) | |
| Fastening screws of retaining rail on roof frame | For installation, procedure No. 8, item -8- . See Figure. | 2.8 (2) Nm (ftlb.) | |
| Fastening screws of tension cable on main bow | For installation, procedure No. 9, item -4- . See Figure. | 7 (5) Nm (ftlb.) | |

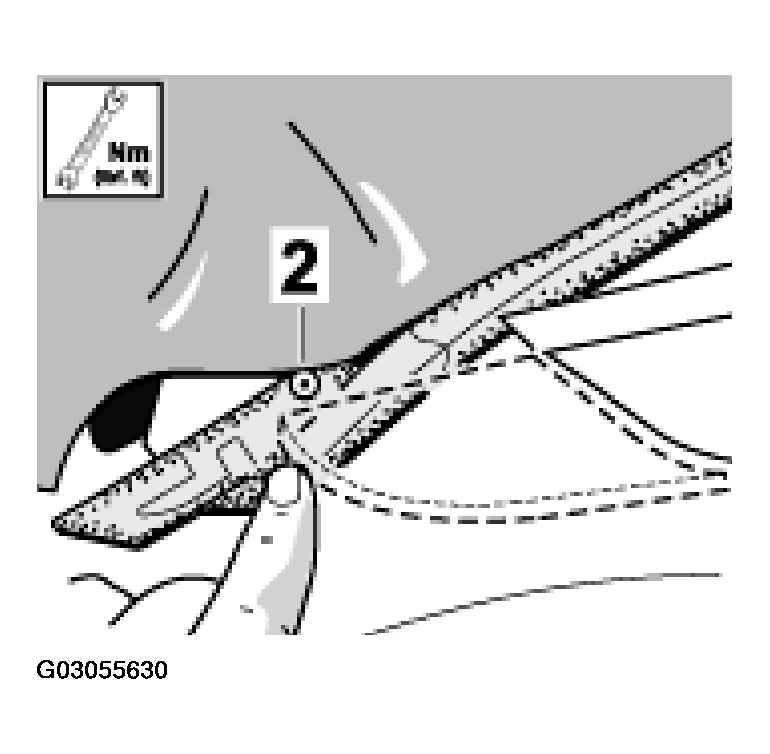

| Fastening screws of tension bow seal on tension bow | For installation, procedure No. 11, item -2- . See Figure. | 5 (3.5) Nm (ftlb.) |
