Replacing convertible-top covering with flexible rear window: Notes

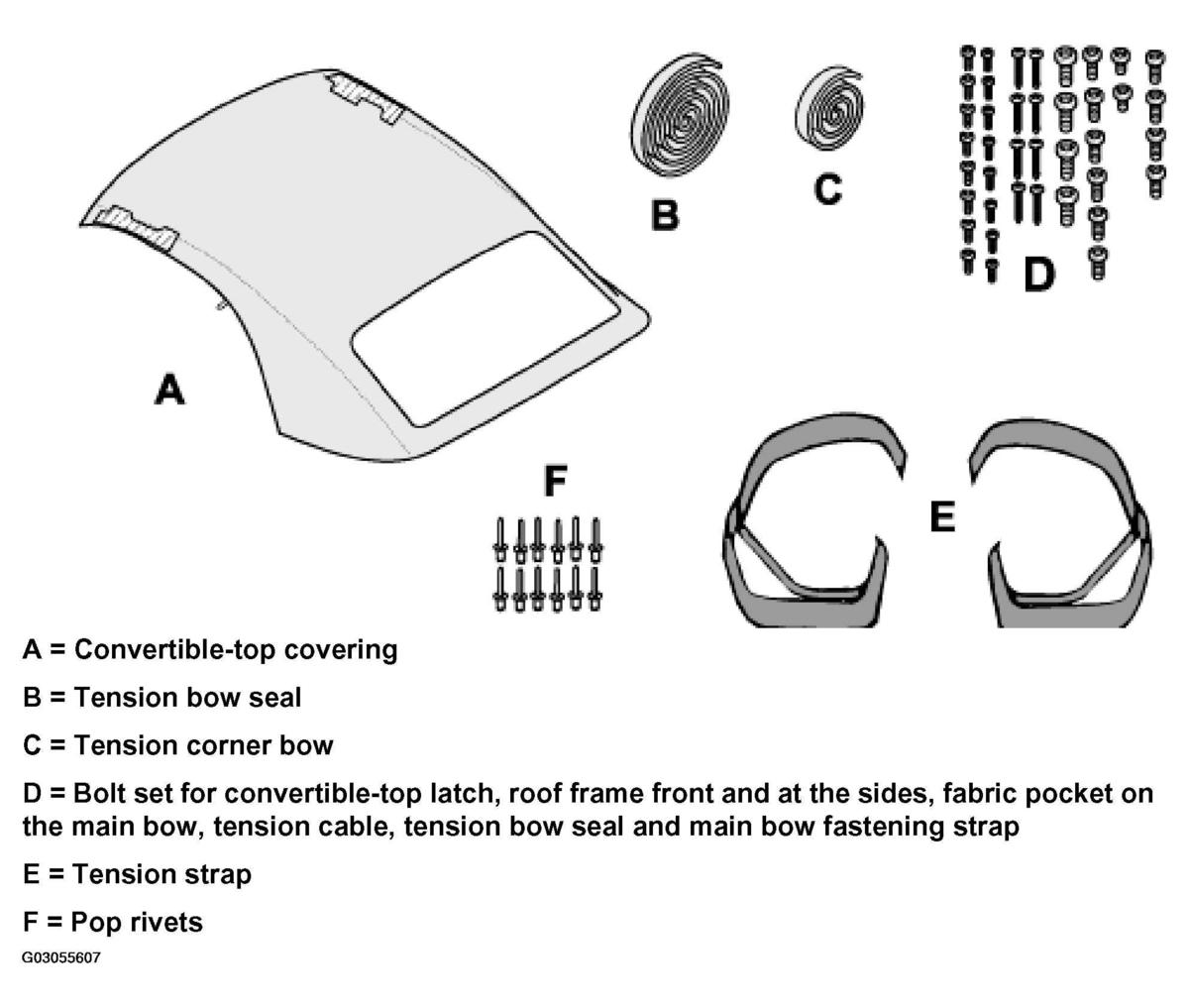

Fig 1: Identifying Components Of Convertible-Top Covering With Flexible Rear Window

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• The aforementioned convertible-top covering spare parts are required for replacement of the convertible-top covering.
• The spare parts contained in the convertible-top covering scope of parts must always be replaced.
• The flexible rear window is not included in this scope of parts.
• The convertible-top covering must be replaced at a room temperature of at least 15°C (59 Fahrenheit).
