Installing the microswitch for convertible-top compartment lid
WARNING: This page is about a different variant/trim than selected.
- Installing microswitch

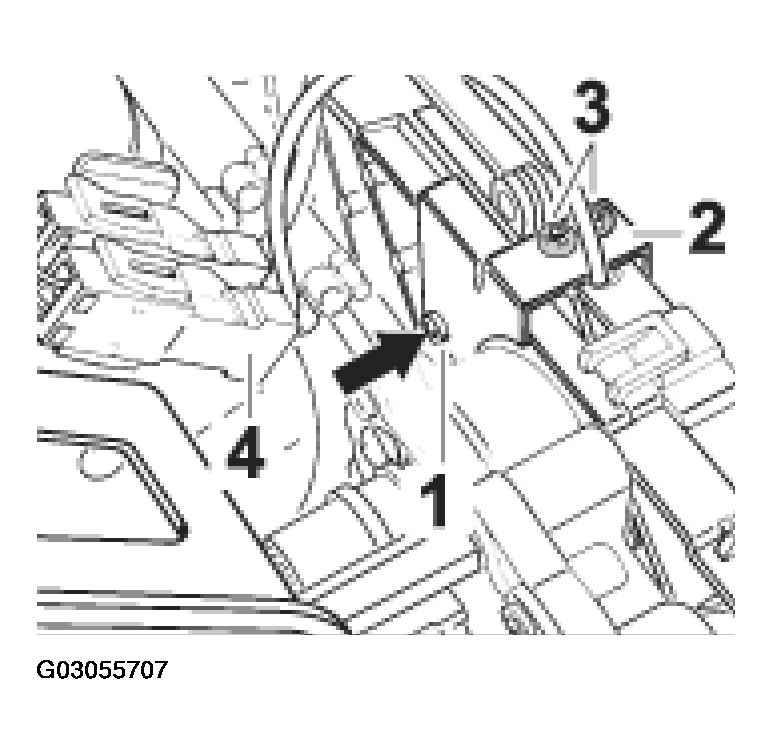

Fasten microswitch on the retaining bracket -2-
with tab washers -3-
and install. See Figure.
Engage electrical plug connection -4-
and perform a function test. See Figure.
- Lay carpet over the microswitch
Fold the carpet forward again and fasten with the plastic clips.
