Installing microswitch

WARNING: This page is about a different variant/trim than selected.
  1. Install new contacts of the microswitch wires

    Reinstall the new contacts of the microswitch wires in the same position and close the secondary locking of the plug connection with a small screwdriver again.

  2. Install and fasten upper microswitch -1-  with bracket

    Turn threaded spindle until the fastening screws -2-  can be screwed down with an angle screwdriver (Torx T10). See Fig 1.

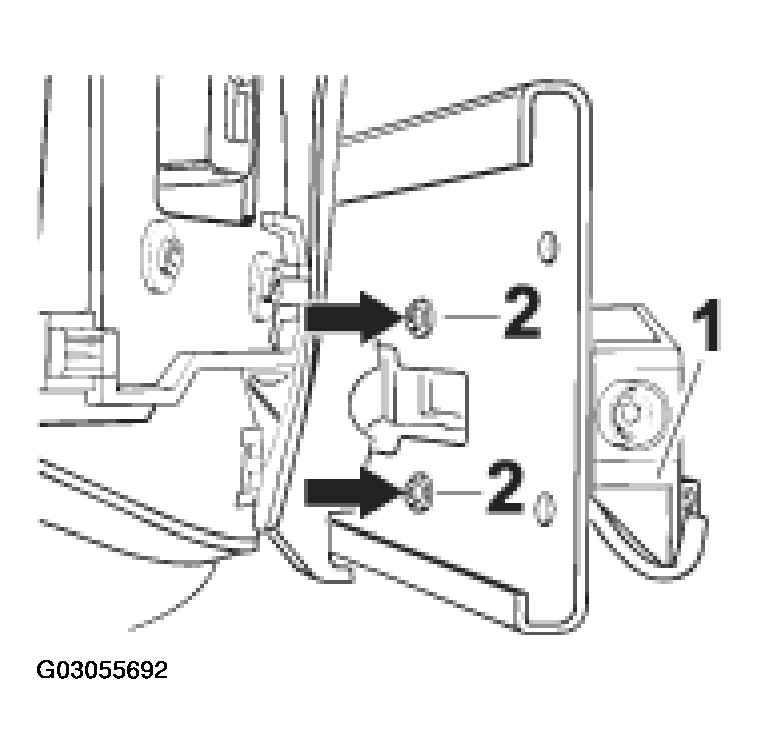

    Fig 1: Installing Upper Microswitch With Bracket
    G03055692Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Fasten the line routing

    Fasten the line under the upper microswitch with a tie wrap.

    Position line in the retaining clip.

  4. Install lower microswitch

    Install lower microswitch and fasten the fastening points (plastic) with the retaining clips or carefully heat them with a soldering iron until the material starts to flow. The microswitch must be seated firmly in the fastening points after the material cools.

  5. Fasten the line routing

    Fasten the cable under the lower microswitch with a tie wrap.

  6. Install rear side section flap.

    See REMOVING AND INSTALLING REAR SIDE SECTION FLAP .
